2307731 Series

Catalog

6P,2MM,B-B,REC,DRHZ,SMD,0.76AU,T

Part	Voltage Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Color	Termination	Connector Type	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Material	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type
TE Connectivity Raychem Cable Protection 2307731-6	125 VDC	Female Socket	30 Áin	0.76 Ám	Gold	125 °C	-40 °C	Surface Mount Right Angle	Black	Solder	Receptacle	All	Tin	6	0.161 in	4.1 mm	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	2 A	0.079 in	2 mm	2	Square	3 µm	118.1 µin	Push-Pull
TE Connectivity Raychem Cable Protection 1-2307731-4	125 VDC	Female Socket	30 Áin	0.76 Ám	Gold	125 °C	-40 °C	Surface Mount Right Angle	Black	Solder	Receptacle	All	Tin	14	0.161 in	4.1 mm	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	2 A	0.079 in	2 mm	2	Square	0.3 µm	12 µin	Push-Pull

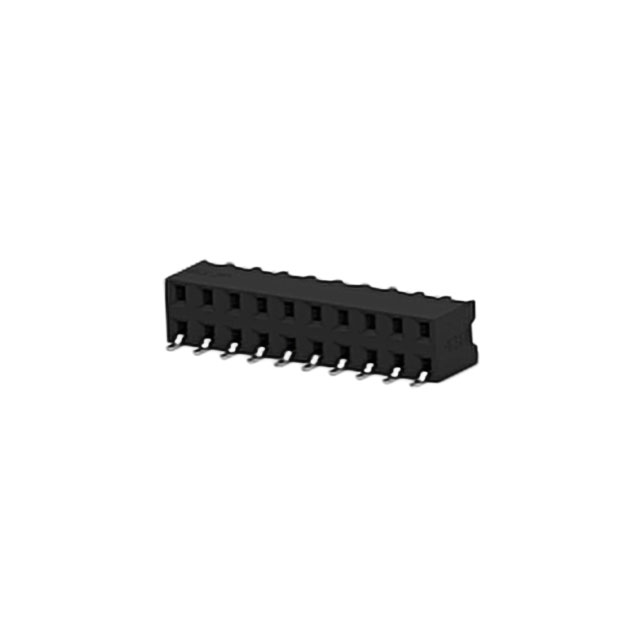

TE Connectivity Raychem Cable Protection 2-2307731-0	125 VDC	Female Socket	30 Áin	0.76 Ám	Gold	125 °C	-40 °C	Surface Mount Right Angle	Black	Solder	Receptacle	All	Tin	20	0.161 in	4.1 mm	Phosphor Bronze	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	2 A	0.079 in	2 mm	2	Square	3 µm	118.1 µin	Push-Pull
