Common Mode Chokes / Filters 518uH 1.45A 0.076ohms

Manufacturer: Eaton - Electronics Division

Catalog

Common Mode Chokes / Filters 518uH 1.45A 0.076ohms

Catalog

Common Mode Chokes / Filters 518uH 1.45A 0.076ohms

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max)	Number of Lines	Current Rating (Max) [Max]	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [z]	Height (Max) [z]	Inductance @ Frequency	Package / Case	Size / Dimension [x]	Size / Dimension [y]
Eaton - Electronics Division CMS2-14-R	Surface Mount	8.9 mm	0.35 in	8.9 mm	0.35 in	620 mOhm	2	500 mA	Power Line	160 °C	-40 C	6 mm	0.236 in	1.34 mH	Horizontal 4 PC Pad

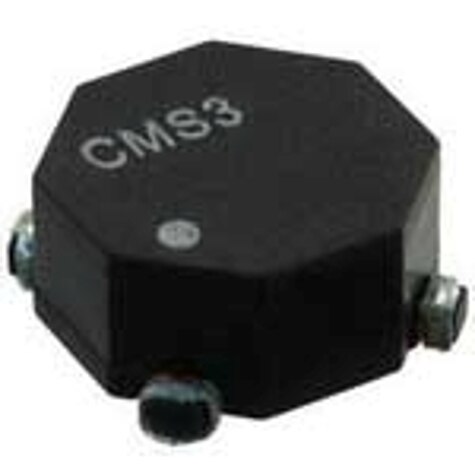

Eaton - Electronics Division CMS3-10-R	Surface Mount	11.43 mm	0.45 in	11.43 mm	0.45 "	76 mOhm	2	1.45 A	Power Line	160 °C	-40 C	6 mm	0.236 in	518 µH	Horizontal 4 PC Pad

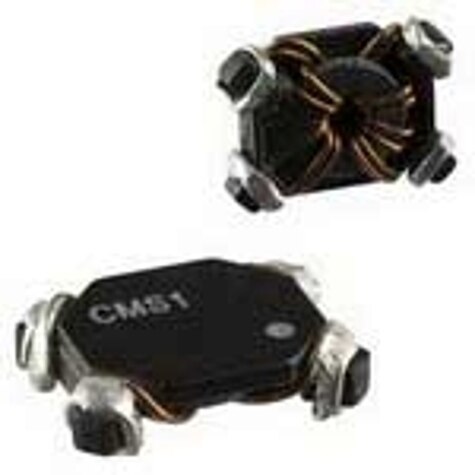

Eaton - Electronics Division CMS1-10-R	Surface Mount	7.2 mm		9.4 mm		48 mOhm	2	1.65 A	Power Line	160 °C	-40 C	0.102 in 2.6 mm		73.7 µH	Horizontal 4 PC Pad	0.37 in	0.283 "
