UTG02 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 9POS PNL MT

Part	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Contact Shape	Shell Material	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Note	Type	Mounting Type	Orientation	Connector Type	Shielding	Position Types	Number of Positions	Contact Type	Material Flammability Rating	Insert Material	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection IP Rating	Ingress Protection Description

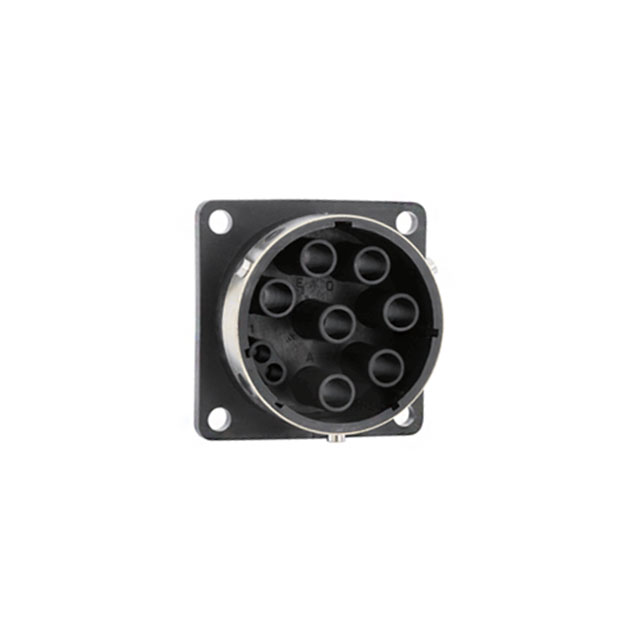

Amphenol Aerospace Operations UTG0247S	24 mm	7 mm	8 16	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Female Sockets	Panel Mount	N (Normal)	Receptacle Housing	Unshielded	PE	9	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver

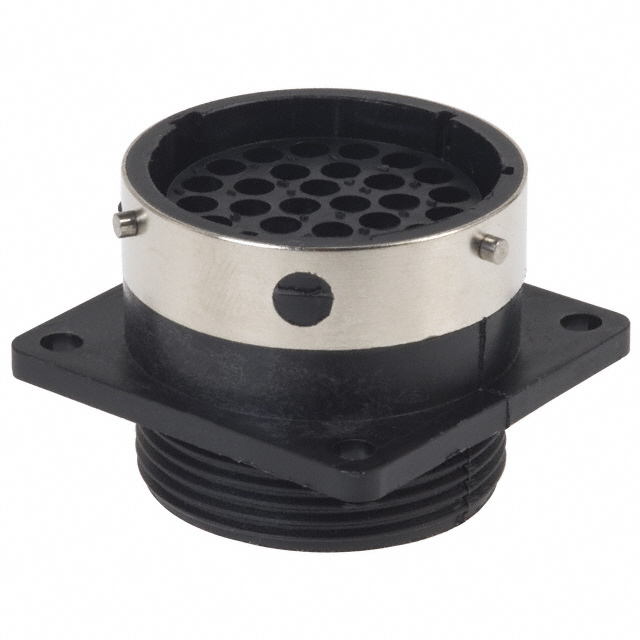

Amphenol Aerospace Operations UTG020-28S			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Female Sockets	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		28	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	28	20
Amphenol Aerospace Operations UTG020-28P			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Male Pins	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		28	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	28	20
Amphenol Aerospace Operations UTG02448SH			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Female Sockets	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		48	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	48	24	IP65	Dust Tight Water Resistant

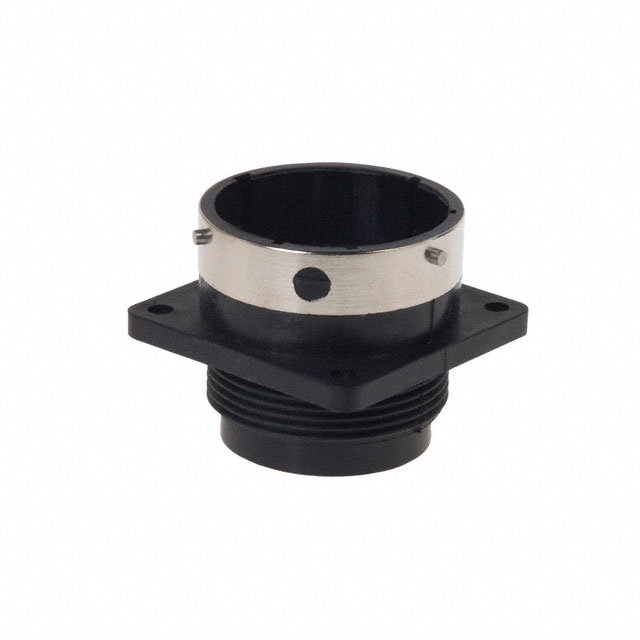

Amphenol Aerospace Operations UTG022-35P			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Male Pins	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		35	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	35	22
Amphenol Aerospace Operations UTG022-35S			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Female Sockets	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		35	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	35	22

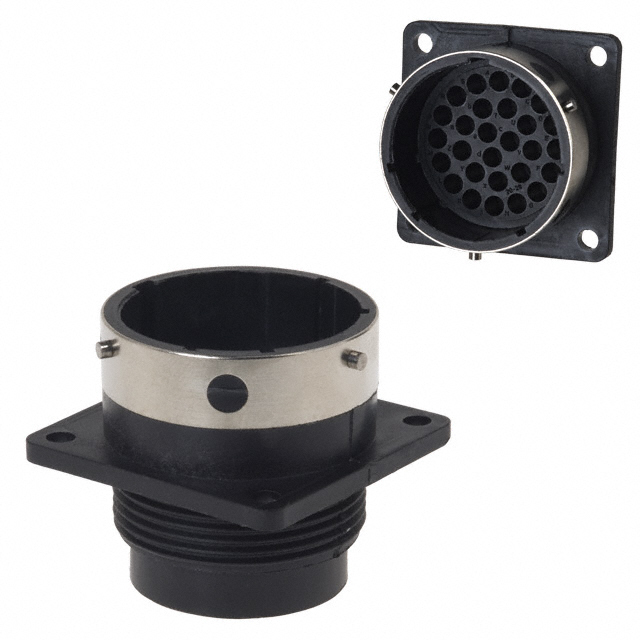

Amphenol Aerospace Operations UTG02028PH			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Male Pins	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		28	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	28	20	IP65	Dust Tight Water Resistant

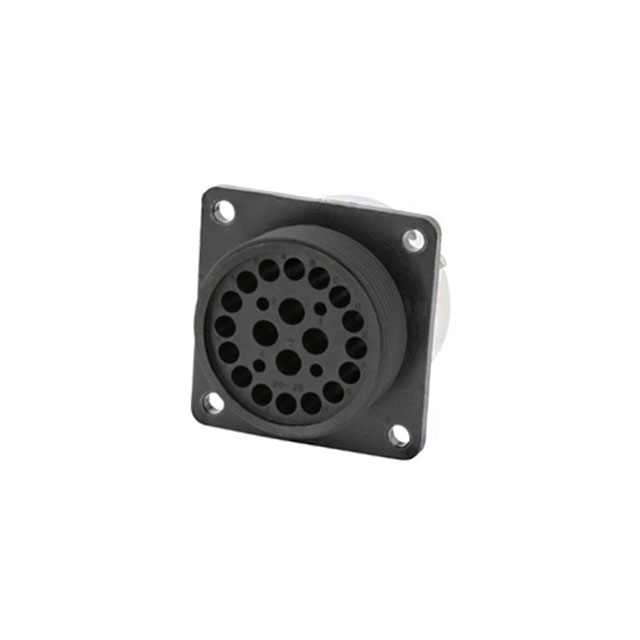

Amphenol Aerospace Operations UTG02020SH			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Female Sockets	Panel Mount	N (Normal)	Receptacle Housing	Unshielded	PE	20	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	20	20	IP65	Dust Tight Water Resistant

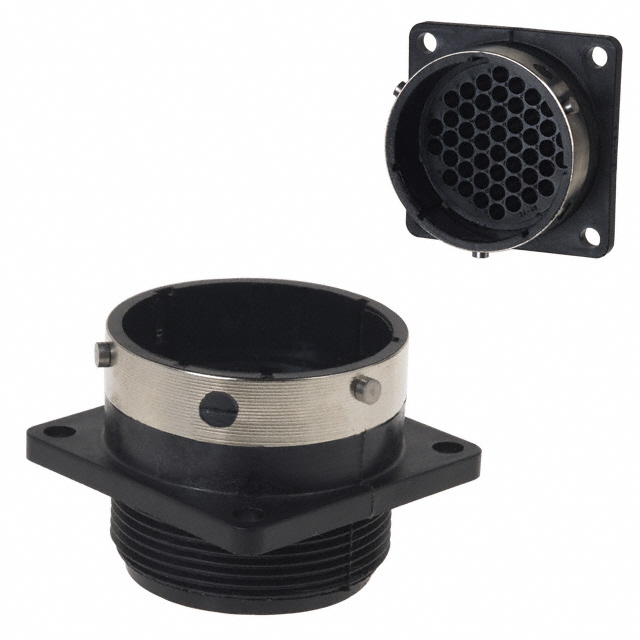

Amphenol Aerospace Operations UTG02448P			16 S	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Male Pins	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		48	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver	48	24
Amphenol Aerospace Operations UTG02411P	24 mm	11 mm	8 16	Circular	Glass Filled Polyester	Bayonet Lock	125 °C	-55 °C	Flange	Contacts Not Included	For Male Pins	Panel Mount	N (Normal)	Receptacle Housing	Unshielded		11	Crimp	UL94 V-0	Glass Filled Thermoplastic	Black Silver
