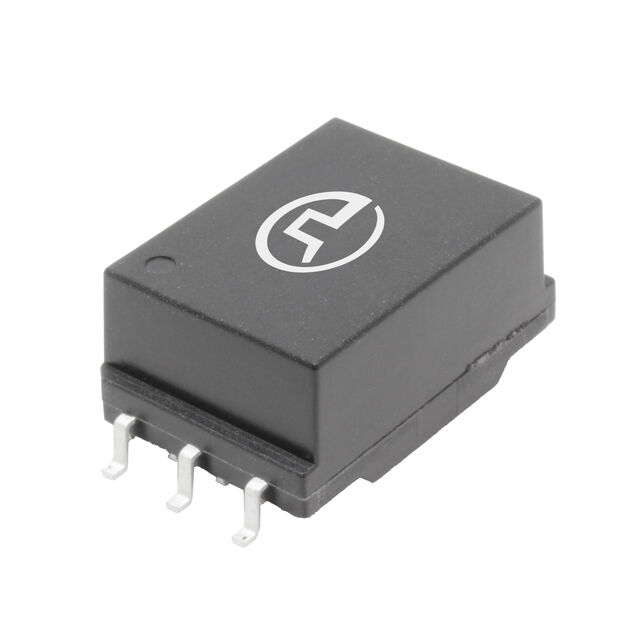

HXE20xxHL Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER TRANSFORMERS 1500V REINFORCED 1CT:1CT SMT XFMR 6000 V -40C TO +125C
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Turns Ratio - Primary:Secondary | Transformer Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.344 " | 8.74 mm | 150 µH | 125 °C | -40 C | 1:1 | Battery Management | Surface Mount |
 Pulse Electronics | 0.344 " | 8.74 mm | 150 µH | 125 °C | -40 C | 1:1 | Battery Management | Surface Mount |
Pulse Electronics | 0.344 " | 8.74 mm | 150 µH | 125 °C | -40 C | 1:1 | Battery Management | Surface Mount |
Pulse Electronics | 0.344 " | 8.74 mm | 150 µH | 125 °C | -40 C | 1:1 | Battery Management | Surface Mount |
