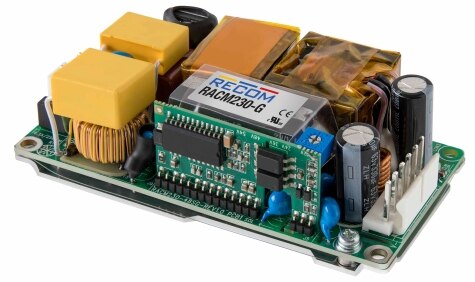

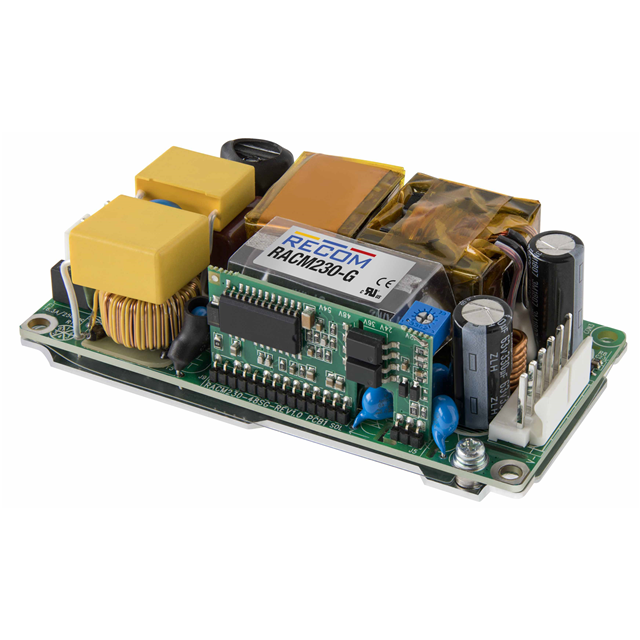

RACM230-G Series
Manufacturer: Recom Power
Beta
⌘K
SWITCHING POWER SUPPLIES MED 230W 80-264VIN 54VOUT 4.26A ENC
| Part | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Type | Standard Number | Current - Output 1 | Applications | Power (Watts) | Features | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Minimum Load Required | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Enclosed | 60335-1 60601-1 60950-1 62368-1 | 4.26 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 54 V | 4000 V | 1 | 105 mm | 35 mm | 1.38 in | 62 mm | 4.13 in | 2.44 " | 80 ¯C | -40 °C | 92 % | ||
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Enclosed | 60335-1 60601-1 60950-1 62368-1 | 9.58 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 24 V | 4000 V | 1 | 105 mm | 35 mm | 1.38 in | 62 mm | 4.13 in | 2.44 " | 80 ¯C | -40 °C | 92 % | ||
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Open Frame | 60335-1 60601-1 60950-1 62368-1 | 4.8 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 48 V | 4000 V | 1 | 101.6 mm | 32 mm | 1.26 " | 50.8 mm | 4 " | 2 in | 80 ¯C | -40 °C | 92 % | ||
Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Enclosed | 60335-1 60601-1 60950-1 62368-1 | 19.17 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 12 V | 4000 V | 1 | 105 mm | 35 mm | 1.38 in | 62 mm | 4.13 in | 2.44 " | 80 ¯C | -40 °C | 91 % | ||
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Open Frame | 60335-1 60601-1 60950-1 62368-1 | 9.58 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 24 V | 4000 V | 1 | 101.6 mm | 32 mm | 1.26 " | 50.8 mm | 4 " | 2 in | 80 ¯C | -40 °C | 92 % | ||
Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Enclosed | 60335-1 60601-1 60950-1 62368-1 | 6.39 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 4000 V | 1 | 105 mm | 35 mm | 1.38 in | 62 mm | 4.13 in | 2.44 " | 80 ¯C | -40 °C | 92 % | 36 V | ||
Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Open Frame | 60335-1 60601-1 60950-1 62368-1 | 4.26 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 54 V | 4000 V | 1 | 101.6 mm | 32 mm | 1.26 " | 50.8 mm | 4 " | 2 in | 80 ¯C | -40 °C | 92 % | ||
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Open Frame | 60335-1 60601-1 60950-1 62368-1 | 19.17 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 12 V | 4000 V | 1 | 101.6 mm | 32 mm | 1.26 " | 50.8 mm | 4 " | 2 in | 80 ¯C | -40 °C | 91 % | ||
Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Open Frame | 60335-1 60601-1 60950-1 62368-1 | 6.39 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 4000 V | 1 | 101.6 mm | 32 mm | 1.26 " | 50.8 mm | 4 " | 2 in | 80 ¯C | -40 °C | 92 % | 36 V | ||
 Recom Power | CB CE cURus | 80 VAC 120 VDC | 264 VAC 370 VDC | Chassis Mount | Enclosed | 60335-1 60601-1 60950-1 62368-1 | 4.8 A | Household Appliances ITE (Commercial) Medical | 230 W | Adjustable Output | 48 V | 4000 V | 1 | 105 mm | 35 mm | 1.38 in | 62 mm | 4.13 in | 2.44 " | 80 ¯C | -40 °C | 92 % |
