X2Y Series

Catalog

FEED THROUGH CAPACITORS 100V 4700PF X7R 0805 20% THICKNESS=0.85MM

Part	Features	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Tolerance	Voltage - Rated	Applications	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]

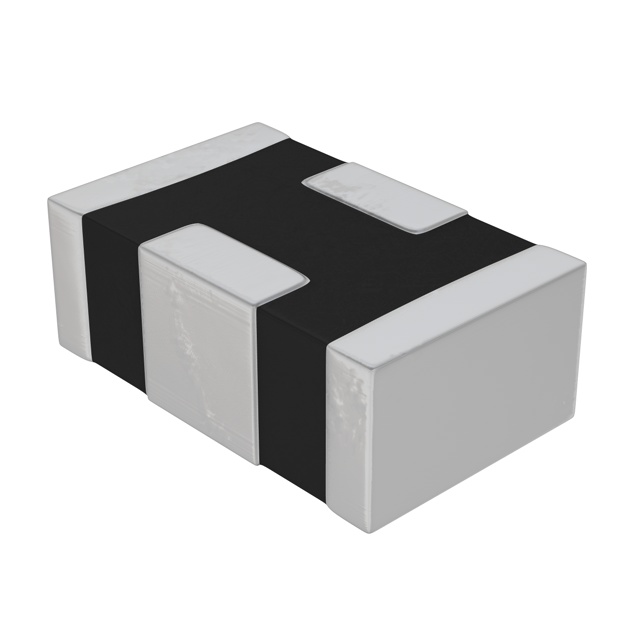

Pulse Electronics CX0805MRX7R0BB472	Low ESL (X2Y)	0.037 in	0.95 mm	X7R	20 %	100 V	Bypass Decoupling	0.0047 µF	2 mm	1.25 mm	0.049 "	0.079 in	MLCC Surface Mount	-55 C	125 °C	0805

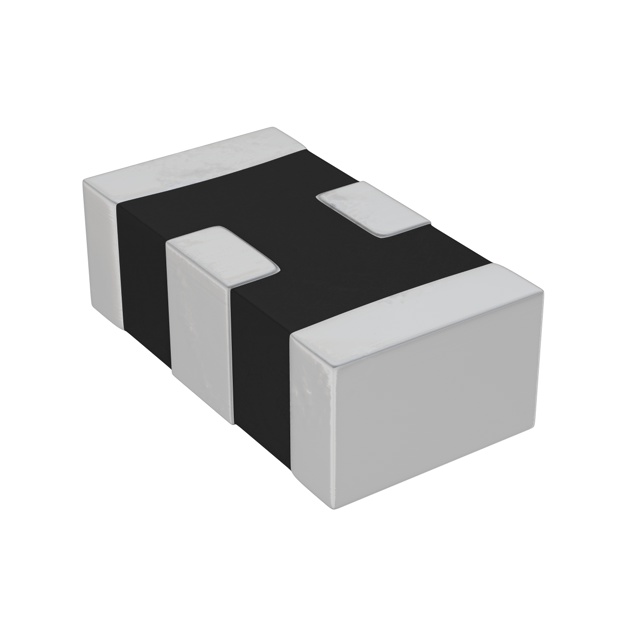

Pulse Electronics CX0603MRX7R9BB562	Low ESL (X2Y)	0.03 in	0.75 mm	X7R	20 %	50 VDC	Bypass Decoupling	0.0056 µF	1.6 mm	0.85 mm	0.033 "	0.063 "	MLCC Surface Mount	-55 C	125 °C	0603	1608 Metric
Pulse Electronics CX0805MRX7R9BB153	Low ESL (X2Y)	0.037 in	0.95 mm	X7R	20 %	50 VDC	Bypass Decoupling	15000 pF	2 mm	1.25 mm	0.049 "	0.079 in	MLCC Surface Mount	-55 C	125 °C	0805
Pulse Electronics CX1210MKX7R9BB224	Low ESL (X2Y)			X7R	20 %	50 VDC	Bypass Decoupling	0.22 µF	3.2 mm	2.5 mm	0.098 in	0.126 "	MLCC Surface Mount	-55 C	125 °C	1210	3225 Metric	0.067 "	1.7 mm
