HGG.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Shielding	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation [custom]	Primary Material	Insert Material	Shell Material	Connector Type	Contact Finish - Mating	Mounting Type	Mounting Feature	Features	Color	Shell Size - Insert	Ingress Protection	Fastening Type	Shell Finish	Termination	Shell Size - Insert [custom]
LEMO HGG.0B.304.CLLP	Shielded	4	7 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted	Silver	304	IP68 - Dust Tight Waterproof	Push-Pull	Chrome

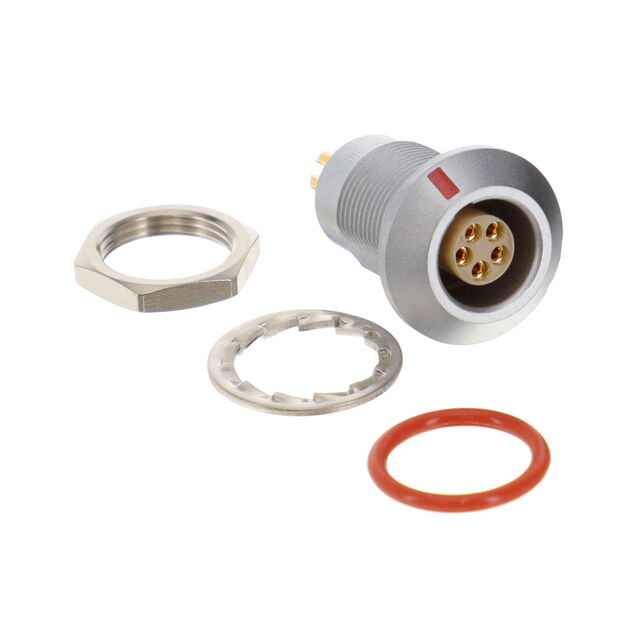

LEMO HGG.0B.305.CLLP	Shielded	5	6.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted	Silver	305	IP68 - Dust Tight Waterproof	Push-Pull	Chrome
LEMO HGG.0B.306.CLLP	Shielded	6	2.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted	Silver	306	IP68 - Dust Tight Waterproof	Push-Pull	Chrome
LEMO HGG.0B.303.CLLP	Shielded		8 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted	Silver	303	IP68 - Dust Tight Waterproof	Push-Pull	Chrome

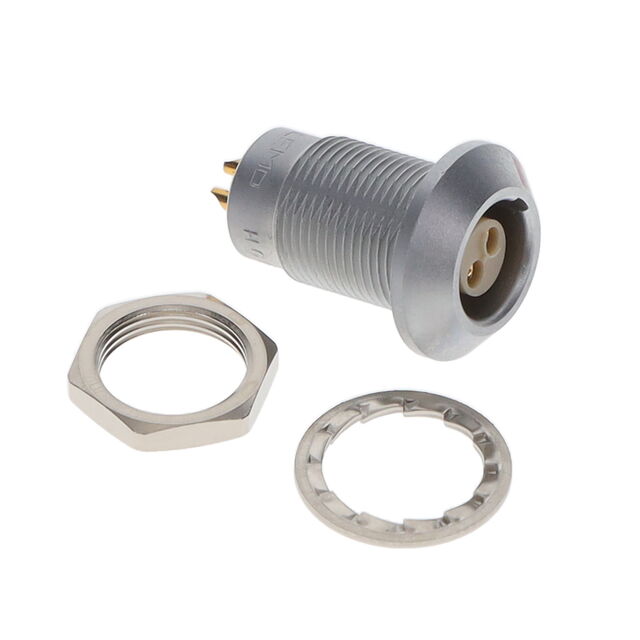

LEMO HGG.0B.302.CLLPV	Shielded	2	10 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted Vacuumtight	Silver	302	IP68 - Dust Tight Waterproof	Push-Pull	Chrome
LEMO HGG.0B.304.CLLPV	Shielded	4	7 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted Vacuumtight	Silver	304	IP68 - Dust Tight Waterproof	Push-Pull	Chrome
LEMO HGG.0B.306.CLNPV	Shielded	6	2.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Bulkhead - Rear Side Nut	Potted Vacuumtight	Silver	306	IP68 - Dust Tight Waterproof	Push-Pull	Chrome	Solder
LEMO HGG.0B.307.CLLPV	Shielded	7	2.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted Vacuumtight	Silver		IP68 - Dust Tight Waterproof	Push-Pull	Chrome		307
LEMO HGG.0B.306.CLLPV	Shielded	6	2.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted Vacuumtight	Silver	306	IP68 - Dust Tight Waterproof	Push-Pull	Chrome
LEMO HGG.0B.307.KLLP	Shielded	7	2.5 A	UL94 V-0	Bronze	1.5 Ám	59 Áin	-20 ░C	100 °C	G	Metal	Polyetheretherketone (PEEK)	Brass	Receptacle Female Sockets	Gold	Panel Mount	Bulkhead - Rear Side Nut	Potted	Black		IP68 - Dust Tight Waterproof	Push-Pull			307
