TL1WK Series

Catalog

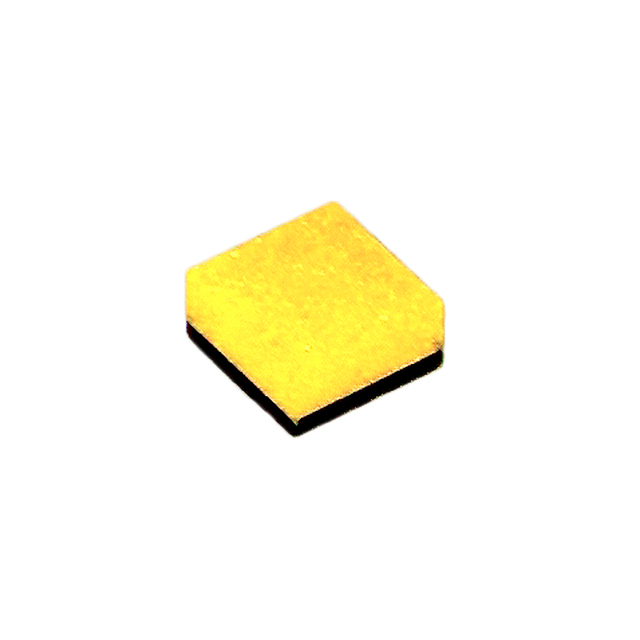

LED LETERAS COOL WHT 6500K 2SMD

Part	Thermal Resistance of Package	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Current - Max [Max]	Flux @ 25°C, Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Mounting Type	CCT (K)	Viewing Angle	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Toshiba Semiconductor and Storage TL1WK-DW1,L	17 °C/W	SMD	0.39 mm	0.015 "	60 mA	131 lm/W	2.8 V	80	180 mA	22 lm	2-SMD No Lead	0.026 in	0.65 mm	0.65 mm	0.026 "	Cool White	Surface Mount	6500 K
Toshiba Semiconductor and Storage TL1WK-DW1,LCS	17 °C/W	SMD	0.39 mm	0.015 "	60 mA	130 lm/W	2.8 V	80	180 mA	22 lm	2-SMD No Lead	0.026 in	0.65 mm	0.65 mm	0.026 "	Cool White	Surface Mount	6500 K	165 °
Toshiba Semiconductor and Storage TL1WK-LL1,L	17 °C/W	SMD	0.39 mm	0.015 "	60 mA	113 lm/W	2.8 V	80	180 mA		2-SMD No Lead	0.026 in	0.65 mm	0.65 mm	0.026 "	Warm White	Surface Mount	2700 K		17 lm	23 lm
