MTB Series

Manufacturer: Adam Tech

Catalog

CONN RCPT HSG 8POS 3.96MM

Part	Note	Contact Termination	Number of Rows	Number of Positions	Pitch	Pitch	Connector Type	Contact Type	Insulation Material	Color	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]

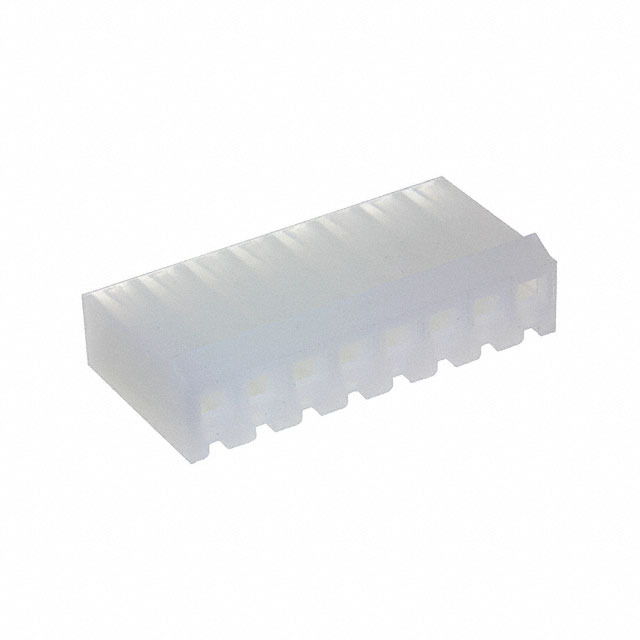

Adam Tech MTB-08	Contacts Not Included	Crimp	1	8	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C
Adam Tech MTB-11	Contacts Not Included	Crimp	1	11	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

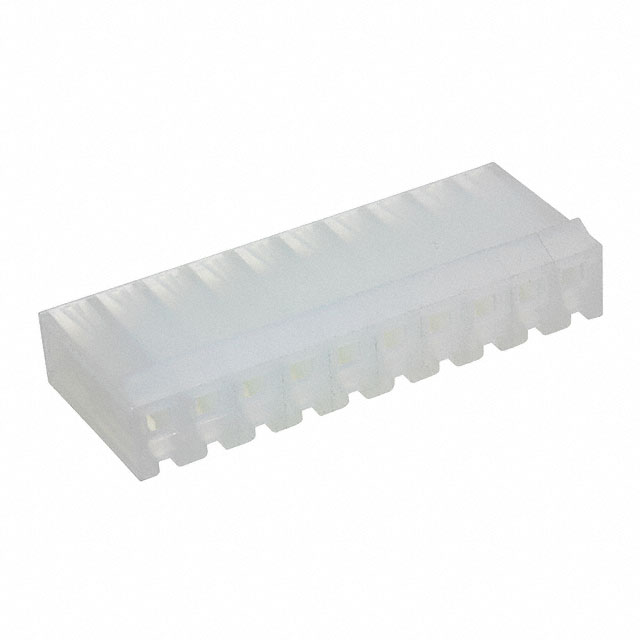

Adam Tech MTB-10	Contacts Not Included	Crimp	1	10	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

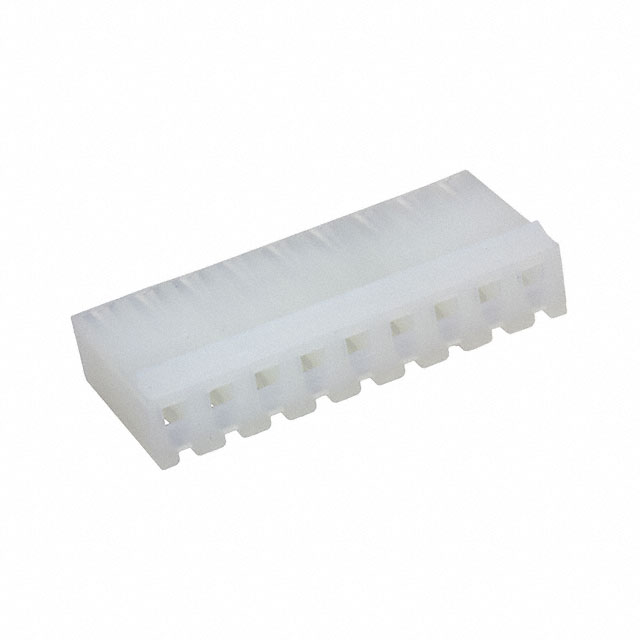

Adam Tech MTB-09	Contacts Not Included	Crimp	1	9	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

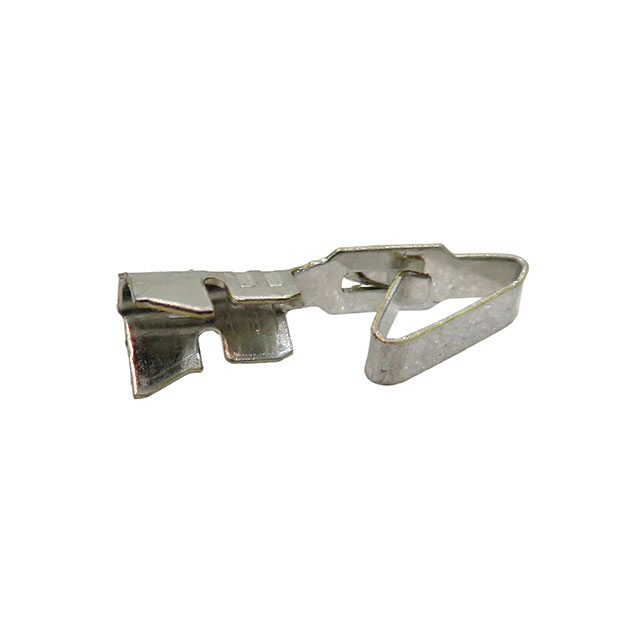

Adam Tech MTB-C-B		Crimp													Tin	Non-Gendered	Stamped	26 AWG	17.5 AWG

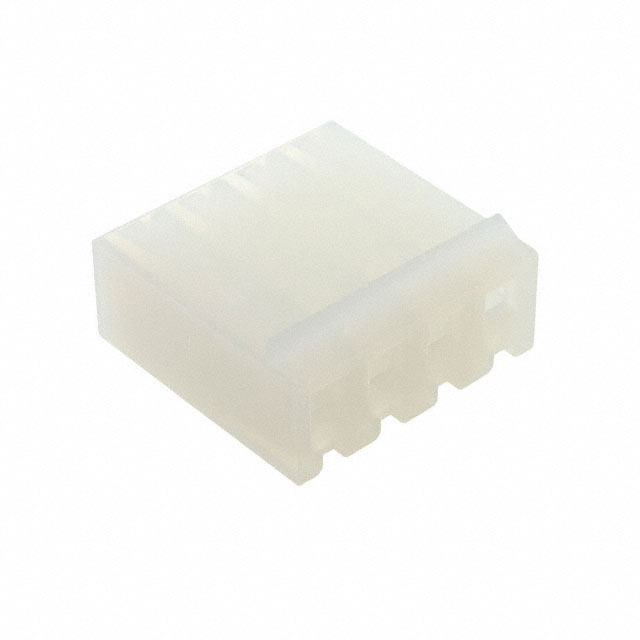

Adam Tech MTB-04	Contacts Not Included	Crimp	1	4	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

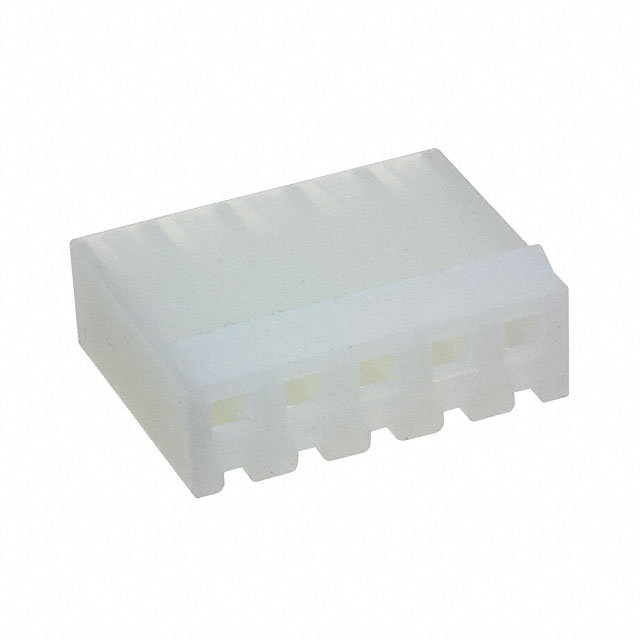

Adam Tech MTB-05	Contacts Not Included	Crimp	1	5	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

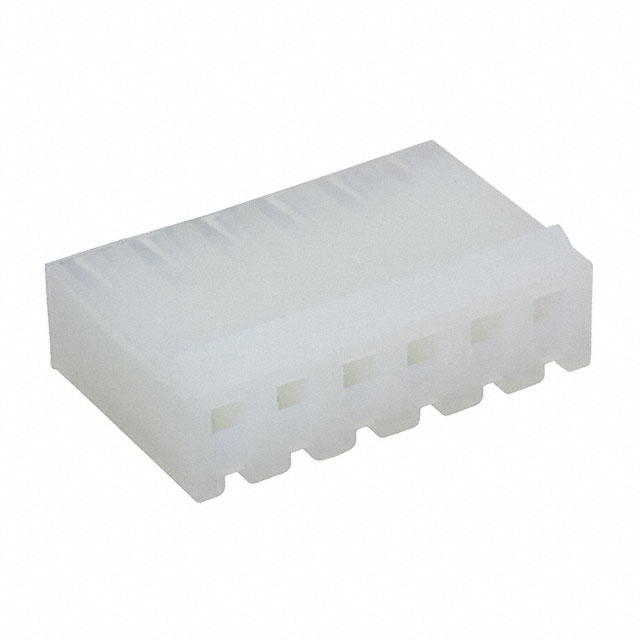

Adam Tech MTB-06	Contacts Not Included	Crimp	1	6	3.96 mm	0.156 in	Receptacle	Female Socket	Nylon 6/6 Polyamide (PA66)	White	Free Hanging (In-Line)	Locking Ramp	85 °C	-25 °C

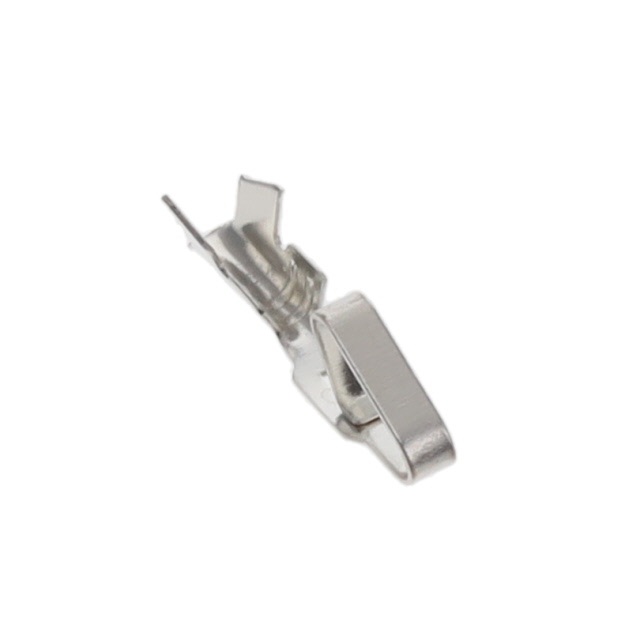

Adam Tech MTB-C-R		Crimp													Tin	Non-Gendered	Stamped	26 AWG	17.5 AWG
