2314868 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Part	Insulation Material	Termination	Material Flammability Rating	Number of Rows	Fastening Type	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Shape	Features	Contact Type	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions

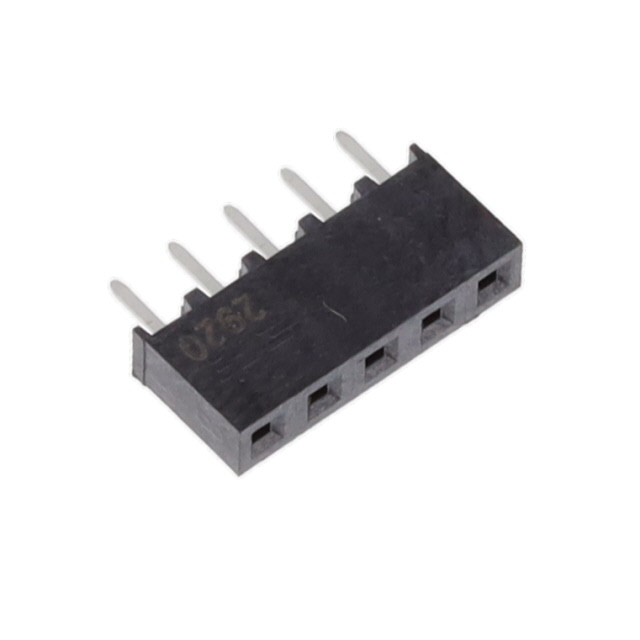

TE Connectivity Raychem Cable Protection 2314868-5	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	1	Push-Pull	Through Hole	Tin	Gold	Phosphor Bronze	0.079 in	2 mm	0.079 "	2 mm	All	125 VDC	3 µm	118.1 µin	3.94 µin	0.1 µm	2 A	Square	Pick and Place	Female Socket	Black	0.177 in	4.5 mm	125 °C	-40 °C	Receptacle

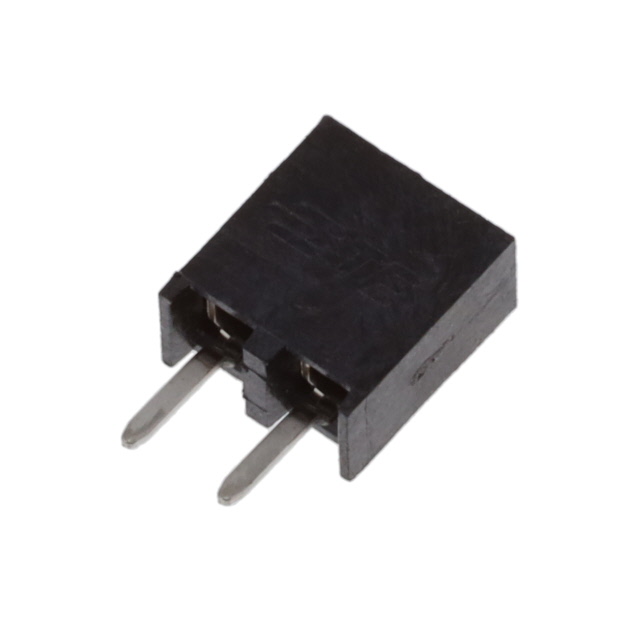

TE Connectivity Raychem Cable Protection 2314868-2	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	1	Push-Pull	Through Hole	Tin	Gold	Phosphor Bronze	0.079 in	2 mm	0.079 "	2 mm	All	125 VDC	3 µm	118.1 µin	3.94 µin	0.1 µm	2 A	Square	Pick and Place	Female Socket	Black	0.177 in	4.5 mm	125 °C	-40 °C	Receptacle	2
TE Connectivity Raychem Cable Protection 2314868-3	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	1	Push-Pull	Through Hole	Tin	Gold	Phosphor Bronze	0.079 in	2 mm	0.079 "	2 mm	All	125 VDC	0.3 µm	12 µin	3.94 µin	0.1 µm	2 A	Square	Pick and Place	Female Socket	Black	0.177 in	4.5 mm	125 °C	-40 °C	Receptacle

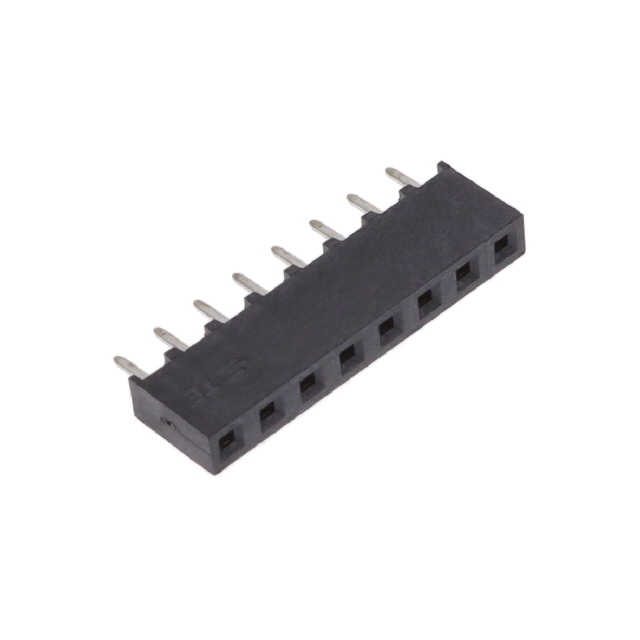

TE Connectivity Raychem Cable Protection 2314868-8	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	1	Push-Pull	Through Hole	Tin	Gold	Phosphor Bronze	0.079 in	2 mm	0.079 "	2 mm	All	125 VDC	3 µm	118.1 µin	3.94 µin	0.1 µm	2 A	Square	Pick and Place	Female Socket	Black	0.177 in	4.5 mm	125 °C	-40 °C	Receptacle	8

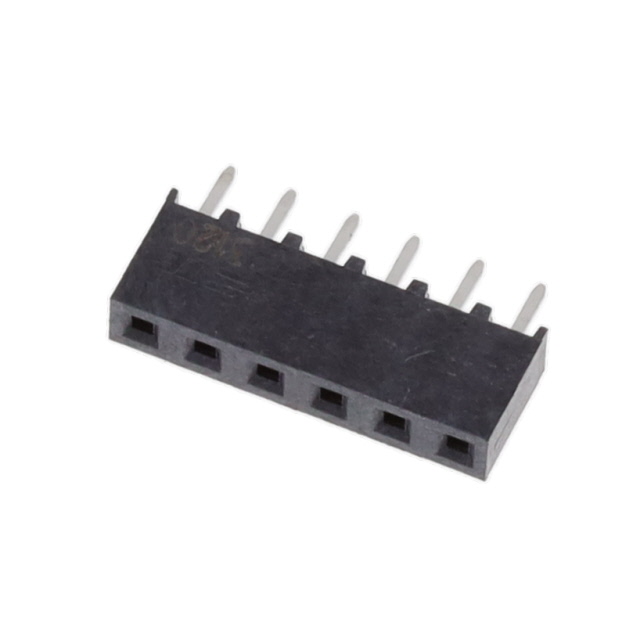

TE Connectivity Raychem Cable Protection 2314868-6	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	1	Push-Pull	Through Hole	Tin	Gold	Phosphor Bronze	0.079 in	2 mm	0.079 "	2 mm	All	125 VDC	3 µm	118.1 µin	3.94 µin	0.1 µm	2 A	Square	Pick and Place	Female Socket	Black	0.177 in	4.5 mm	125 °C	-40 °C	Receptacle	6
