1KSMB10 Series
Manufacturer: Taiwan Semiconductor Corporation
Beta
⌘K

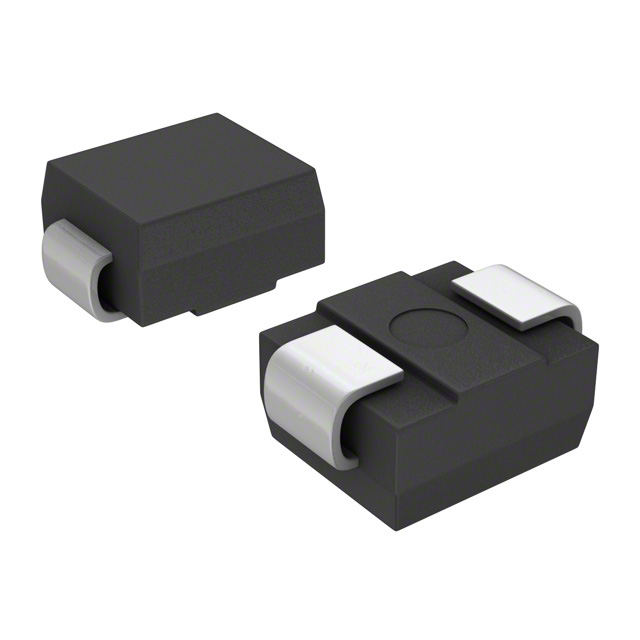

TVS DIODE 8.55VWM 14.5VC DO214AA
| Part | Voltage - Reverse Standoff (Typ) | Voltage - Clamping (Max) @ Ipp [Max] | Type | Mounting Type | Power - Peak Pulse | Power - Peak Pulse | Applications | Voltage - Breakdown (Min) [Min] | Current - Peak Pulse (10/1000µs) | Power Line Protection | Bidirectional Channels [custom] | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Qualification | Unidirectional Channels [custom] | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | 8.55 V | 14.5 V | Zener | Surface Mount | 1 kW | 1000 W | General Purpose | 9.5 V | 69 A | 1 | DO-214AA (SMB) | DO-214AA SMB | 175 °C | -55 °C | ||||
Taiwan Semiconductor Corporation | 8.55 V | 14.5 V | Zener | Surface Mount | 1 kW | 1000 W | 9.5 V | 69 A | DO-214AA (SMB) | DO-214AA SMB | 175 °C | -55 °C | AEC-Q101 | 1 | Automotive | |||
Taiwan Semiconductor Corporation | 8.55 V | 14.5 V | Zener | Surface Mount | 1 kW | 1000 W | 9.5 V | 69 A | 1 | DO-214AA (SMB) | DO-214AA SMB | 175 °C | -55 °C | AEC-Q101 | Automotive | |||
 Taiwan Semiconductor Corporation | 8.55 V | 14.5 V | Zener | Surface Mount | 1 kW | 1000 W | 9.5 V | 69 A | 1 | DO-214AA (SMB) | DO-214AA SMB | 175 °C | -55 °C | AEC-Q101 | Automotive |
