QBHP687 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K

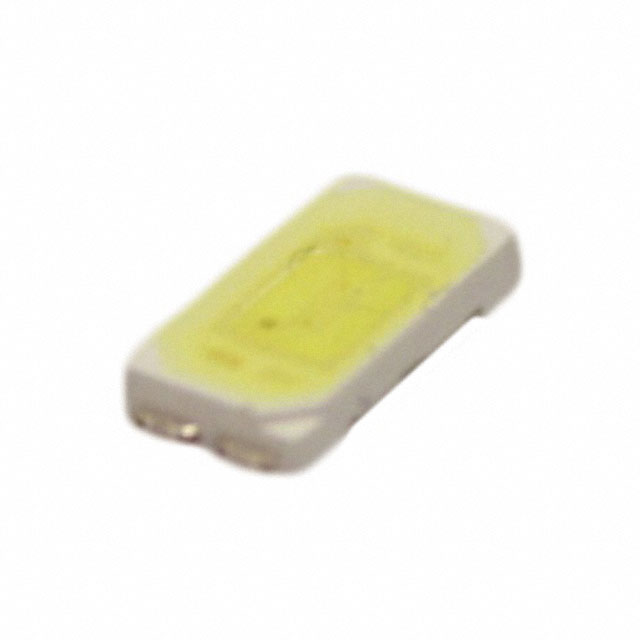

LED QBHP687 NEUT WHT 4000K SMD
| Part | Flux @ 25°C, Current - Test | Package / Case | CRI (Color Rendering Index) | CCT (K) [Max] | CCT (K) | CCT (K) [Min] | Color | Current - Test | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Lumens/Watt @ Current - Test | Supplier Device Package | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | 50 lm | 4-SMD Flat Lead Exposed Pad | 80 | 4240 K | 4000 K | 3640 K | Neutral White | 150 mA | Surface Mount | 0.038 in | 0.97 mm | 3.3 V | 5.3 mm | 0.209 " | 0.118 in | 3 mm | 101 lm/W | SMD | 180 mA |
