MEC0252V2 Series
Manufacturer: Sunon Fans
Beta
⌘K

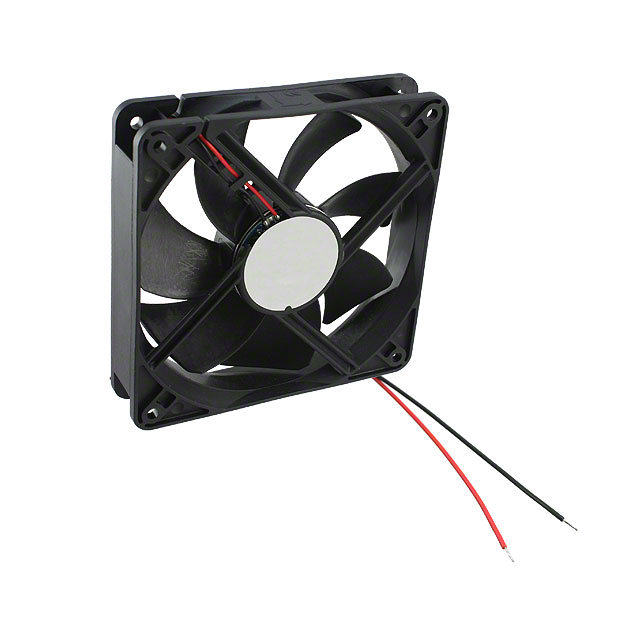

FAN AXIAL 120X25MM 24VDC WIRE
| Part | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Noise | Width [y] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Features | Air Flow | Air Flow | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Termination | Bearing Type | RPM | Static Pressure | Static Pressure | Weight [custom] | Weight [custom] | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | 70000 Hrs | 0.146 A | 10 VDC | 27.6 VDC | Polybutylene Terephthalate (PBT) | 40.5 dB(A) | 25 mm | 3.5 W | 70 °C | -10 °C | Auto Restart | 93 CFM | 2.6 mł/min | CE cUR TUV UL | 120 mm | 120 mm | 24 VDC | 2 Wire Leads | Vapo-Bearing™ | 2700 RPM | 54.8 Pa | 0.22 in H2O | 0.359 lb | 162.84 g | Tubeaxial |
