171750 Series
Manufacturer: Molex
Beta
⌘K

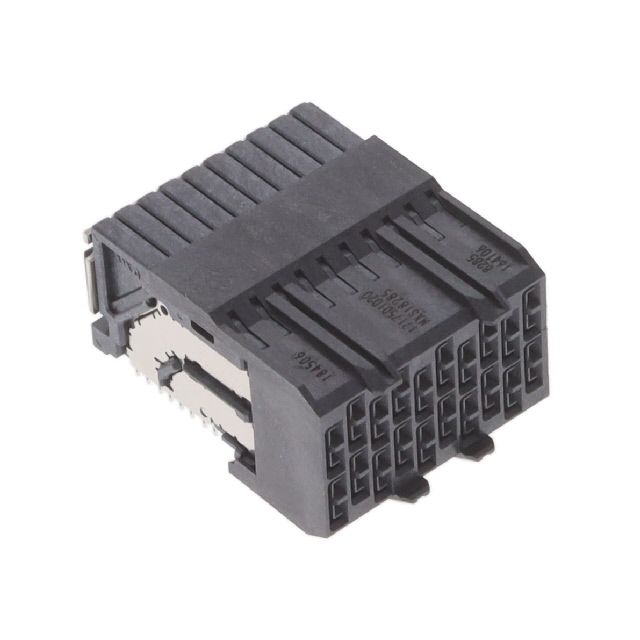

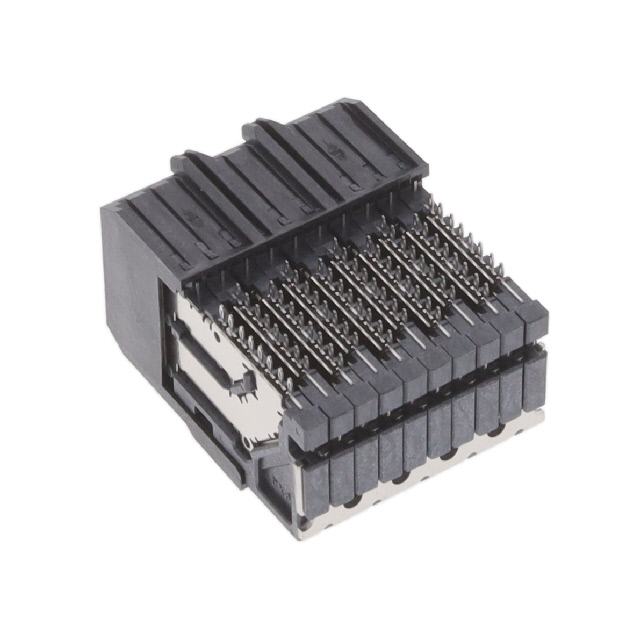

CONN RCPT IMPEL 40POS EDGE MNT
| Part | Material Flammability Rating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Contact Finish | Contact Layout, Typical | Number of Positions Loaded | Number of Positions | Termination | Connector Usage | Number of Columns | Color | Connector Type | Mounting Type | Features | Pitch | Pitch | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | 30 VDC | -55 C | 85 °C | 30 Áin | 0.76 Ám | Impel™ | Gold | 20 | All | 40 | Press-Fit | Coplanar Daughtercard | 10 | Black | Receptacle Female Sockets | Board Edge Right Angle Through Hole | ||||
 Molex | 30 Áin | 0.76 Ám | Impel Guide Left | Gold | All | Press-Fit | Coplanar Daughtercard | 8 | Black | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Shielded | 1.9 mm | 0.075 in | 16 Differential Pairs | ||||||
 Molex | 30 Áin | 0.76 Ám | Impel Guide Right | Gold | 20 | All | 40 | Press-Fit | Coplanar Daughtercard | 10 | Black | Receptacle Female Sockets | Right Angle Through Hole | Board Guide | 1.9 mm | 0.075 in | |||||
 Molex | 30 Áin | 0.76 Ám | Impel Guide Right | Gold | All | 48 | Press-Fit | Coplanar Daughtercard | 12 | Black | Receptacle Female Sockets | Board Edge Right Angle Through Hole | 1.9 mm | 0.075 in | 24 Differential Pairs | ||||||
 Molex | 30 Áin | 0.76 Ám | Impel™ | Gold | All | Press-Fit | Coplanar Daughtercard | 8 | Black | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Shielded | 1.9 mm | 0.075 in | 16 Differential Pairs |
