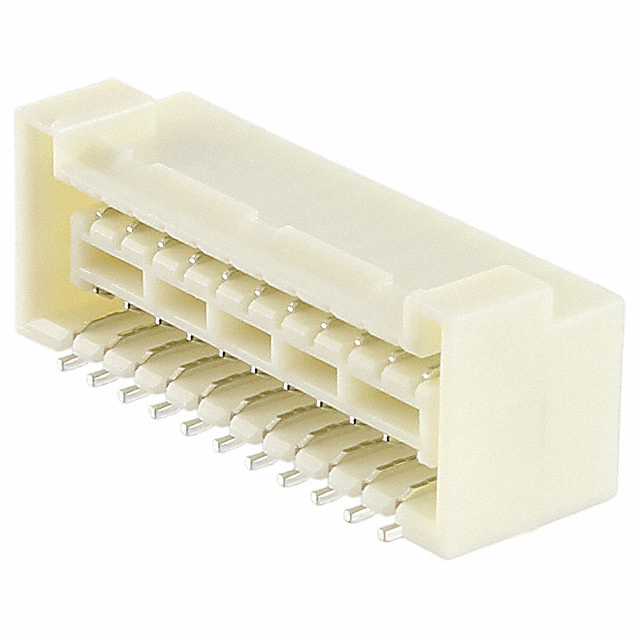

SM22B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 22POS 1.5MM
| Part | Termination | Insulation Color | Number of Positions Loaded | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish - Post | Insulation Material | Contact Material | Material Flammability Rating | Shrouding | Insulation Height | Insulation Height | Mounting Type | Contact Shape | Number of Rows [custom] | Voltage Rating | Connector Type | Current Rating (Amps) | Fastening Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | Natural | All | Outer Shroud Contact | 85 °C | -25 °C | 22 | Tin | Nylon Polyamide (PA) | Copper Alloy | UL94 V-0 | Shrouded - 4 Wall | 7.85 mm | 0.309 in | Right Angle Surface Mount | Rectangular | 2 | 100 V | Header | 2 A | Locking Ramp | Board to Cable/Wire |
