TSM-102 Series

Catalog

CONN UNSHROUDED HEADER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY SMD T/R

...

Part	Contact Material	Insulation Material	Number of Positions	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Contact Finish - Mating	Features	Style	Mounting Type	Fastening Type	Contact Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Contact Shape	Contact Length - Mating	Number of Positions Loaded [custom]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-102-01-S-DV-M-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	4	0.1 in	2.54 mm	Solder	-55 °C	125 °C	2	Tin	All	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	Gold	Pick and Place	Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header	2.54 mm	0.1 in	3 µin	0.076 µm	UL94 V-0	Black	Square
Samtec Inc. TSM-102-03-S-SV-P-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.1 in	2.54 mm	Solder	-55 °C	125 °C	1	Tin	All	0.1 in	2.54 mm		10.67 mm	Unshrouded	Gold	Pick and Place	Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header			30 Áin	0.76 Ám	UL94 V-0	Black	Square	0.42 in
Samtec Inc. TSM-102-03-T-SH-A-K-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.12 in	3.05 mm	Solder	-55 °C	105 ░C	1	Tin	All	0.1 in	2.54 mm		10.67 mm	Unshrouded		Board Guide Pick and Place	Board to Board Cable	Surface Mount Right Angle	Push-Pull	Male Pin	Header					UL94 V-0	Black	Square	0.42 in

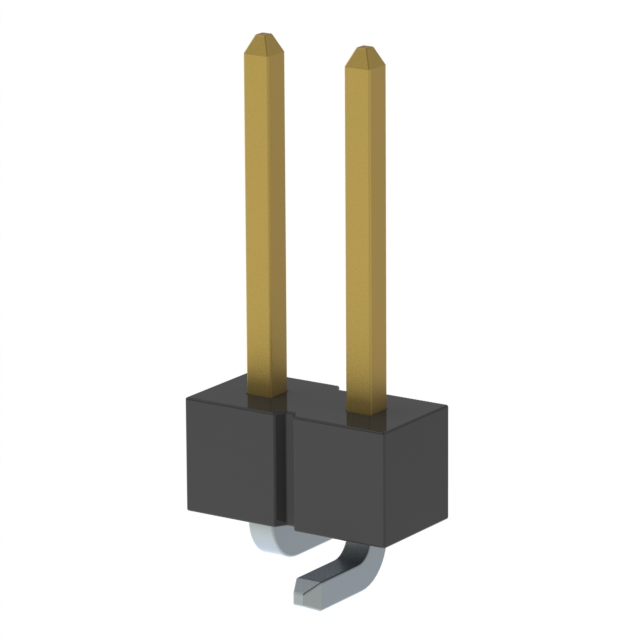

Samtec Inc. TSM-102-02-SM-SV	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.1 in	2.54 mm	Solder	-55 °C	125 °C	1	Tin	All	0.1 in	2.54 mm		8.13 mm	Unshrouded	Gold		Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header			30 Áin	0.76 Ám	UL94 V-0	Black	Square	0.32 in

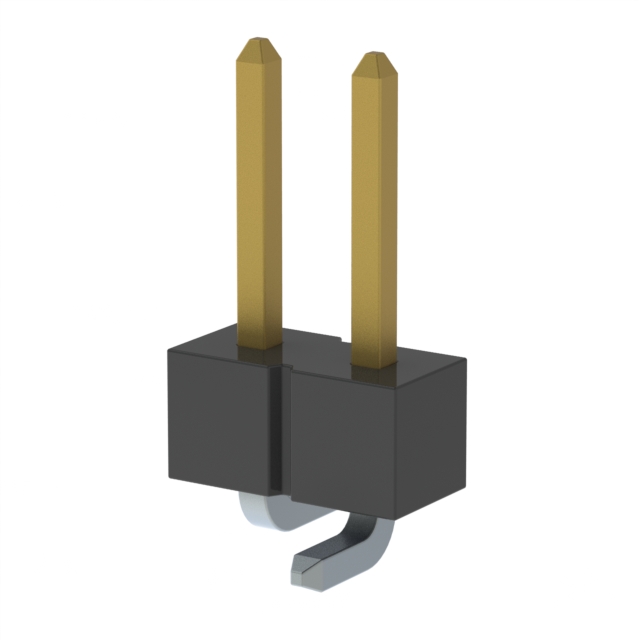

Samtec Inc. TSM-102-01-LM-SV-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.1 in	2.54 mm	Solder	-55 °C	125 °C	1	Tin	All	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	Gold		Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header			10 çin	0.25 çm	UL94 V-0	Black	Square

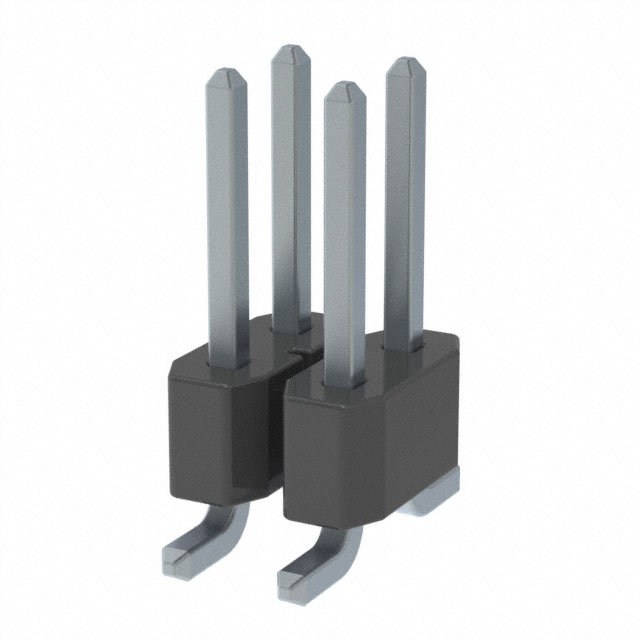

Samtec Inc. TSM-102-01-TM-DV-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	4	0.1 in	2.54 mm	Solder	-55 °C	105 ░C	2	Tin	All	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded			Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header	2.54 mm	0.1 in			UL94 V-0	Black	Square

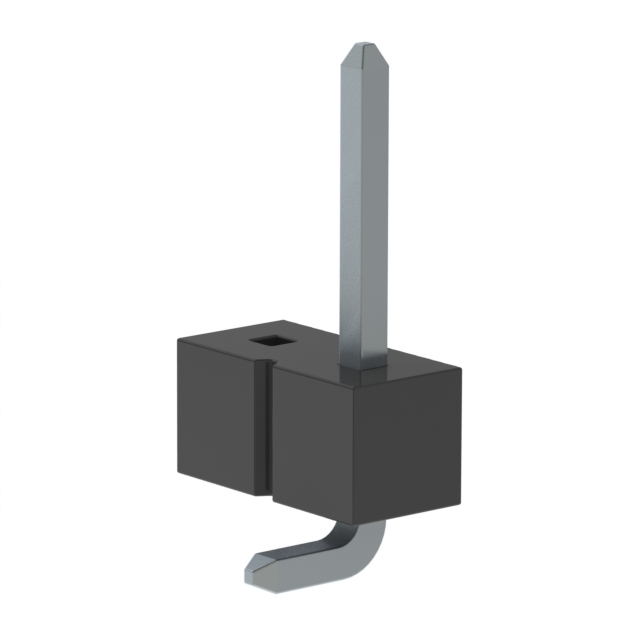

Samtec Inc. TSM-102-01-T-SV-002	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.1 in	2.54 mm	Solder	-55 °C	105 ░C	1	Tin		0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded			Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header					UL94 V-0	Black	Square		1
Samtec Inc. TSM-102-03-L-MT	Phosphor Bronze	Liquid Crystal Polymer (LCP)	4	0.24 in	6.1 mm	Solder	-55 °C	125 °C	2	Tin	All	0.1 in	2.54 mm		10.67 mm	Unshrouded	Gold		Board to Board Cable	Surface Mount Right Angle Through Hole	Push-Pull	Male Pin	Header	2.54 mm	0.1 in	10 çin	0.25 çm	UL94 V-0	Black	Square	0.42 in		2.54 mm	0.1 in

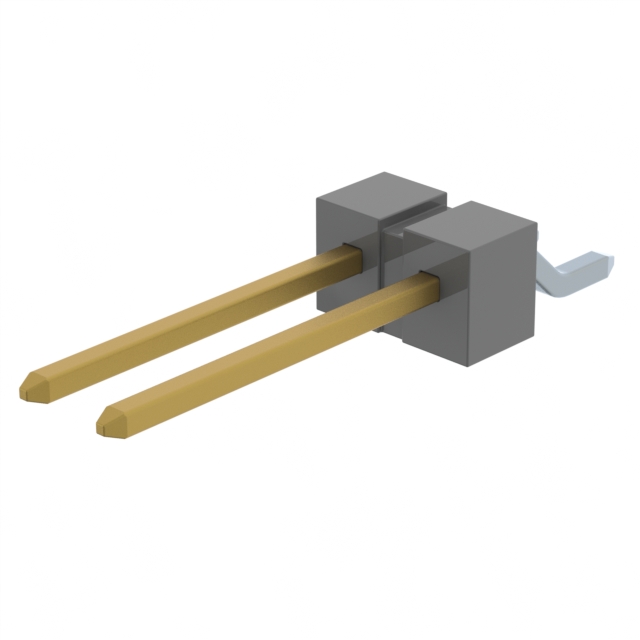

Samtec Inc. TSM-102-03-F-SH-K-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	2	0.12 in	3.05 mm	Solder	-55 °C	125 °C	1	Tin	All	0.1 in	2.54 mm		10.67 mm	Unshrouded	Gold	Pick and Place	Board to Board Cable	Surface Mount Right Angle	Push-Pull	Male Pin	Header			3 µin	0.076 µm	UL94 V-0	Black	Square	0.42 in
Samtec Inc. TSM-102-03-H-DV-P-TR	Phosphor Bronze	Liquid Crystal Polymer (LCP)	4	0.1 in	2.54 mm	Solder	-55 °C	125 °C	2	Gold	All	0.1 in	2.54 mm		10.67 mm	Unshrouded	Gold	Pick and Place	Board to Board Cable	Surface Mount	Push-Pull	Male Pin	Cuttable Header	2.54 mm	0.1 in	30 Áin	0.76 Ám	UL94 V-0	Black	Square	0.42 in				3 µin	0.076 µm
