3079E Series
Manufacturer: Belden Inc.
Beta
⌘K

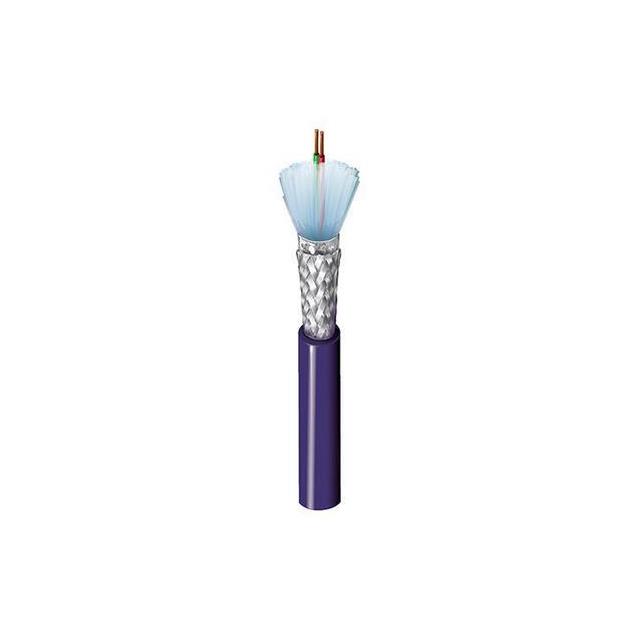

CABLE 2COND 22AWG PUR SHLD
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Features | Shield Type | Number of Conductors | Conductor Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Purple | Poly-Vinyl Chloride (PVC) | Foam Polyethylene (FPE) | Multi-Conductor | 30 AWG | 7 | UL Style 20201 | Flame Retardant UV Resistant | Braid Foil | 2 | Copper Bare | 22 AWG | 75 ░C | -30 ░C | 300 VDC | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Purple | Poly-Vinyl Chloride (PVC) | Foam Polyethylene (FPE) | Multi-Conductor | 30 AWG | 7 | UL Style 20201 | Flame Retardant UV Resistant | Braid Foil | 2 | Copper Bare | 22 AWG | 75 ░C | -30 ░C | 300 VDC | 304.8 m | 1000 ft |
