IM69D120 Series
Manufacturer: INFINEON
Beta
⌘K

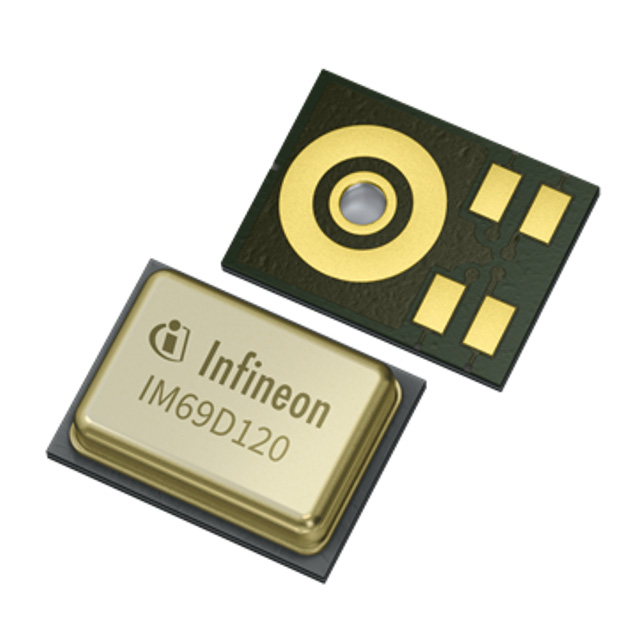

AUDIO CONTROL, MEMS MICROPHONE, 1.62V TO 3.6V, LGA, 5 PINS, -40 °C
| Part | Frequency Range [Min] | Frequency Range [Max] | Port Location | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shape | Current - Supply | Height (Max) [z] | Height (Max) [z] | Voltage Range [Min] | Voltage Range [Max] | Output Type | Type | Direction | S/N Ratio | Sensitivity | Termination | Function | Contents | Utilized IC / Part | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 20 Hz | 20 kHz | Bottom | 0.118 in | 3 mm | 4 mm | 0.157 in | Rectangular | 1.3 mA | 0.051 in | 1.3 mm | 1.62 V | 3.6 V | Digital PDM | MEMS (Silicon) | Omnidirectional | 69 dB | -26 dB | Solder Pads | ||||

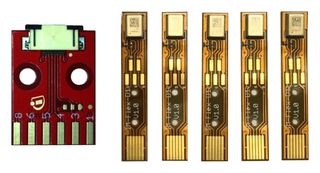

 INFINEON | Audio | MEMS Omnidirectional Microphones | Board(s) | IM69D130 | Digital Output |
