1673A Series
Manufacturer: Belden Inc.
Beta
⌘K

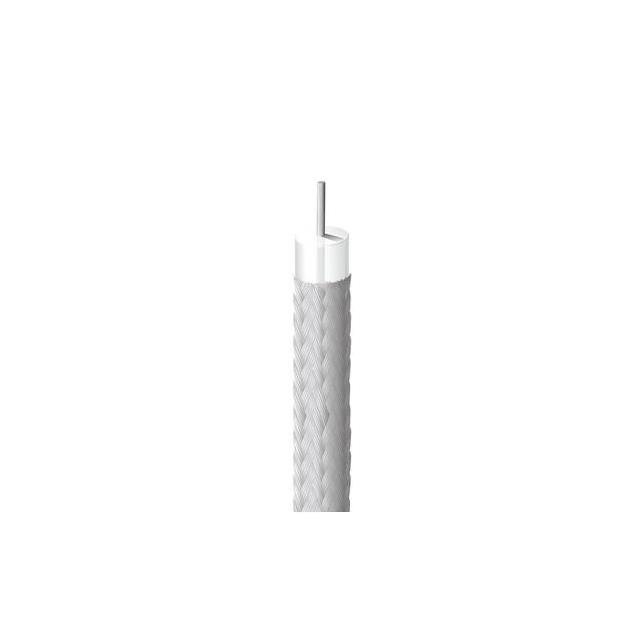

#19 TFE BRD TINNED COAX
| Part | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Conductor Material | VoP, Velocity of Propagation | Dielectric Material | Wire Gauge | Conductor Strand | Cable Type | Length [x] | Length [x] | Cable Group | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare Copper Tinned | -70 °C | 200 °C | 2.95 mm | 0.116 in | 100 % | Copper Covered Silver Coated Steel | 70 | Polytetrafluoroethylene (PTFE) | 19 AWG | Solid | Coaxial | 152.4 m | 500 ft | RG-402 | Braid Foil | ||
 Belden Inc. | Copper Bare Copper Tinned | -70 °C | 200 °C | 2.95 mm | 0.116 in | 100 % | Copper Covered Silver Coated Steel | 70 | Polytetrafluoroethylene (PTFE) | 19 AWG | Solid | Coaxial | 15.24 m | 50 ft | RG-402 | Braid Foil | ||
Belden Inc. | Copper Bare Copper Tinned | -70 °C | 200 °C | 2.95 mm | 0.116 in | 100 % | Copper Covered Silver Coated Steel | 70 | Polytetrafluoroethylene (PTFE) | 19 AWG | Solid | Coaxial | RG-402 | Braid Foil | 100 ' | 30.48 m |
