56K607 Series
Manufacturer: Rosenberger
Beta
⌘K

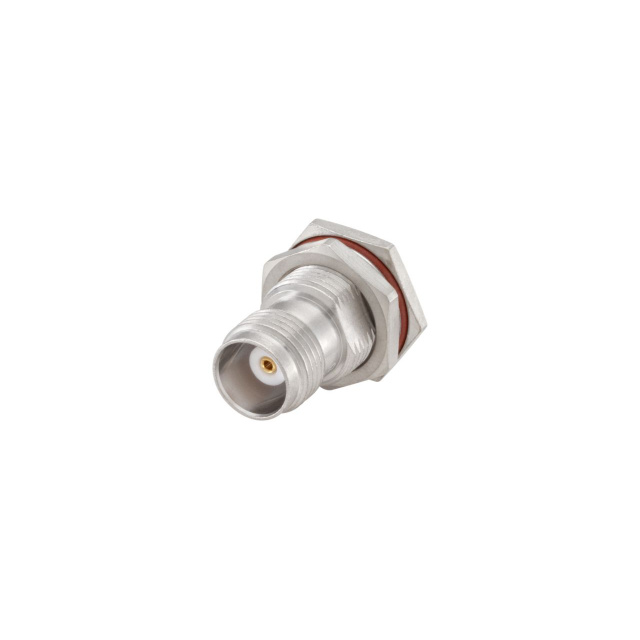

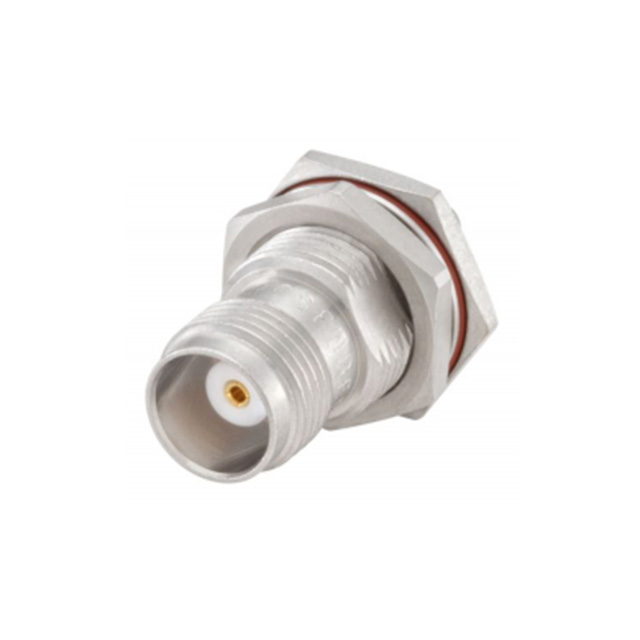

CONN TNC JACK STR 50OHM CRIMP
| Part | Mating Cycles | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Includes | Contact Termination | Fastening Type | Center Contact Material | Mounting Type | Connector Style | Connector Type | Housing Color | Impedance | Mounting Feature | Shield Termination | Cable Group | Cable Group | Frequency - Max [Max] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | White Bronze | 500 V | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 1 Connector 1 Lockwasher 1 Nut | Crimp | Threaded | Beryllium Copper | Panel Mount | TNC | Female Socket Jack | Silver | 50 Ohms | Bulkhead - Front Side Nut | Crimp | 223 400 | RG-142B | 10 GHz | 1 |
 Rosenberger | 500 | White Bronze | 500 V | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Crimp | Threaded | Beryllium Copper | Panel Mount | TNC | Female Socket Jack | Silver | 50 Ohms | Bulkhead - Front Side Nut | Crimp | RG-316 | 10 GHz | 1 |
