A4E-B Series

Catalog

A4E-B200SS

Part	Electrical Life	Mechanical Life	Switch Function	Ingress Protection	Mounting Type	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking	Type	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Color - Actuator/Cap
Omron Automation and Safety A4E-B200SS	100000 Cycles	100000 Cycles	Off-On-Off	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Rectangular	Solder Lug	55 °C	-10 °C	1 A 300 mA	No Marking	Standard	DPST-NO	24 V	34.5 mm	9.5 mm	125 V	Black

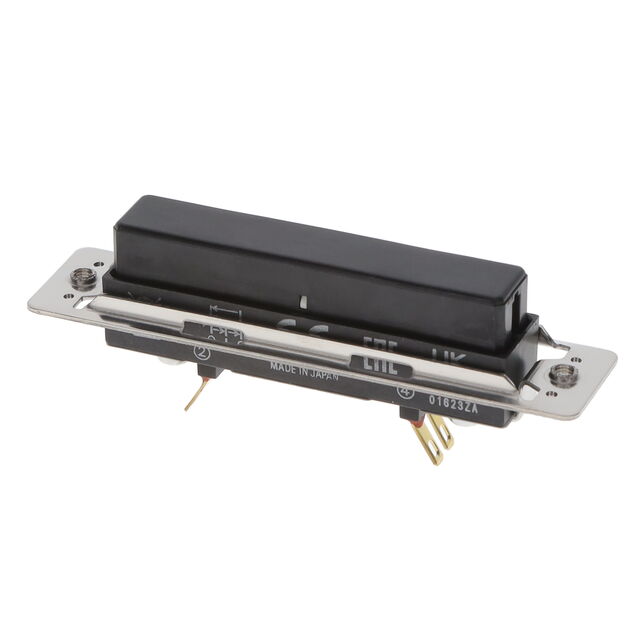

Omron Automation and Safety A4E-B200VS	100000 Cycles	100000 Cycles	Off-On-Off	IP65 - Dust Tight Water Resistant	Panel Mount Rear	Button Rectangular	Solder Lug	55 °C	-10 °C	1 A 300 mA	No Marking	Standard	DPST-NO	24 V	63.3 mm	13.5 mm	125 V	Black

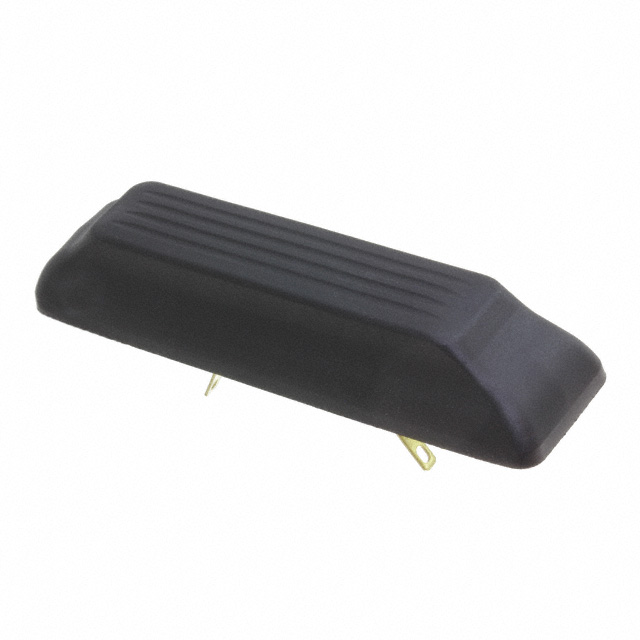

Omron Automation and Safety A4E-B200VA	100000 Cycles	100000 Cycles	Off-On-Off	IP65 - Dust Tight Water Resistant	Panel Mount Front	Button Rectangular Rubber Cap	Solder Lug	55 °C	-10 °C	1 A 300 mA	No Marking	Standard	DPST-NO	24 V	63.3 mm	13.5 mm	125 V	Black
Omron Automation and Safety A4E-B200HS	100000 Cycles	100000 Cycles	Off-On-Off	IP65 - Dust Tight Water Resistant	Chassis Mount	Button Rectangular	Solder Lug	55 °C	-10 °C	1 A 300 mA	No Marking	Standard	DPST-NO	24 V			125 V	Black
