IRS21814 Series

Manufacturer: INFINEON

Catalog

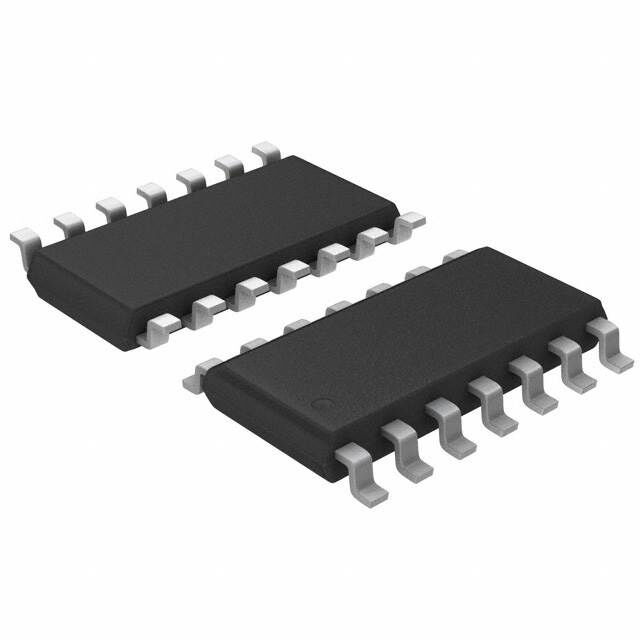

THE IRS21814S IS A 600 V HIGH-SIDE AND LOW-SIDE GATE DRIVER IC WITH SEPARATE PIN FOR LOGIC GROUND (14 LEAD SOIC PACKAGE)

Part	Gate Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Input Type	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case	Mounting Type	Supplier Device Package	Package / Case	Package / Case
INFINEON IRS21814STRPBF	IGBT MOSFET (N-Channel) N-Channel MOSFET	-40 °C	150 °C	1.9 A	2.3 A	Non-Inverting	Half-Bridge	600 V	Independent	20 ns	40 ns	0.8 V 2.5 V	2	20 V	10 VDC	0.154 in 3.9 mm	14-SOIC	Surface Mount
