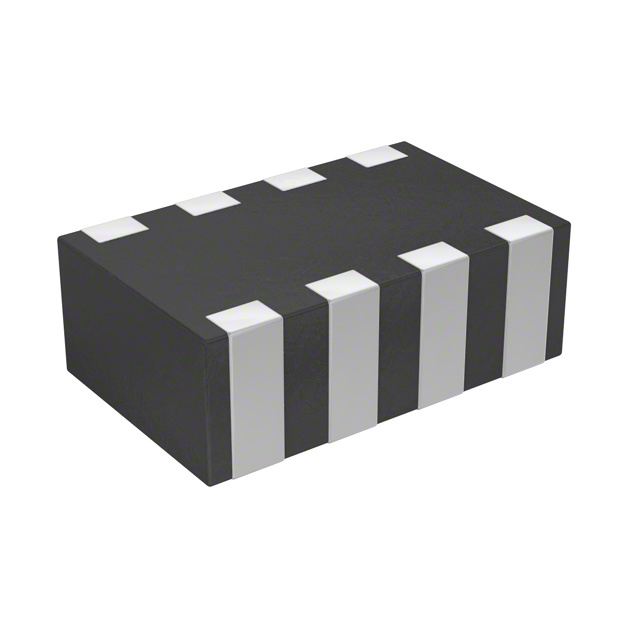

CA Series

Manufacturer: YAGEO

Catalog

CAPACITOR ARRAYS & NETWORKS 16V 0.1UF X7R 4ELEM 0508 10%

Part	Temperature Coefficient	Voltage - Rated	Package / Case	Number of Capacitors	Supplier Device Package	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Circuit Type	Capacitance	Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
YAGEO CA0508KPX7R7BB104	X7R	16 V	0508 (1220 Metric)	4	1220 Metric	0508	0.7 mm	0.028 "	2 mm	1.25 mm	0.049 "	0.079 in	Ceramic	Isolated	100000 pF	10 %	Surface Mount
YAGEO CA0508JRNPO9BN100	C0G NP0	50 VDC	0508 (1220 Metric)	4	1220 Metric	0508	0.7 mm	0.028 "	2 mm	1.25 mm	0.049 "	0.079 in	Ceramic	Isolated	10 pF	5 %	Surface Mount
YAGEO CA0612KRNPO0BN101	C0G NP0	100 V	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	100 pF	10 %	Surface Mount	0.035 in	0.9 mm
YAGEO CA0612KRX7R9BB104	X7R	50 VDC	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	100000 pF	10 %	Surface Mount	0.035 in	0.9 mm
YAGEO CA0612JRNPO9BN181	C0G NP0	50 VDC	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	180 pF	5 %	Surface Mount	0.035 in	0.9 mm
YAGEO CA0508KRX7R8BB222	X7R	25 VDC	0805	4	1220 Metric	0508	0.7 mm	0.028 "	2 mm	1.25 mm	0.049 "	0.079 in	Ceramic	Isolated	2200 pF	10 %	Surface Mount
YAGEO CA0508JRNPO0BN101	C0G NP0	100 V	0805	4	1220 Metric	0508	0.7 mm	0.028 "	2 mm	1.25 mm	0.049 "	0.079 in	Ceramic	Isolated	100 pF	5 %	Surface Mount
YAGEO CA0612JRNPO0BN391	C0G NP0	100 V	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	390 pF	5 %	Surface Mount	0.035 in	0.9 mm
YAGEO CA0612JRNPO9BN101	C0G NP0	50 VDC	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	100 pF	5 %	Surface Mount	0.035 in	0.9 mm
YAGEO CA0612MRX7R8BB223	X7R	25 VDC	1206 (3216 Metric)	4	1632 Metric	0612			3.2 mm	1.6 mm	0.063 "	0.126 "	Ceramic	Isolated	0.022 µF	20 %	Surface Mount	0.035 in	0.9 mm
