FCTN-RLY Series

Catalog

MODULE 4 POS RECEIVER 418MHZ

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Function	Interface	Sensitivity	Features	Modulation or Protocol	Frequency	Data Rate (Max) [Max]

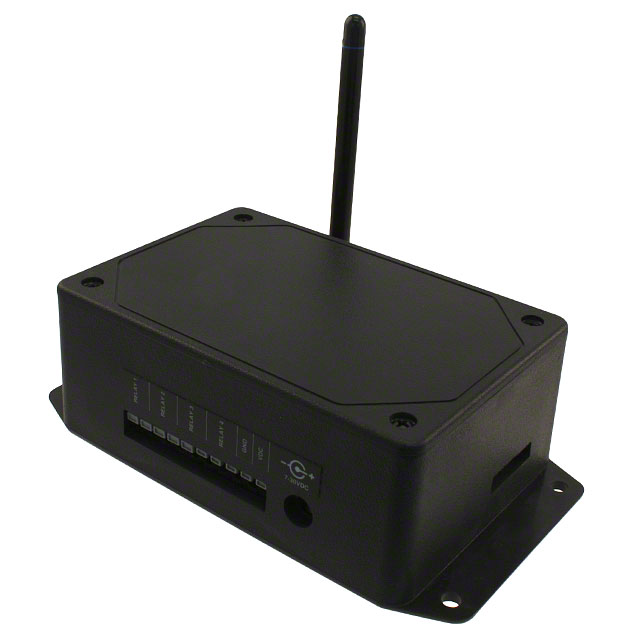

TE Connectivity AMP Connectors FCTN-RLY4-418-2	30 VDC	7 V	General Purpose	Receiver Relay	Receiver Latched Output	-112 dBm	4 Positions	OOK	418 MHz
TE Connectivity AMP Connectors FCTN-RLY4XX-433-MOM				Receiver Relay					433 MHz

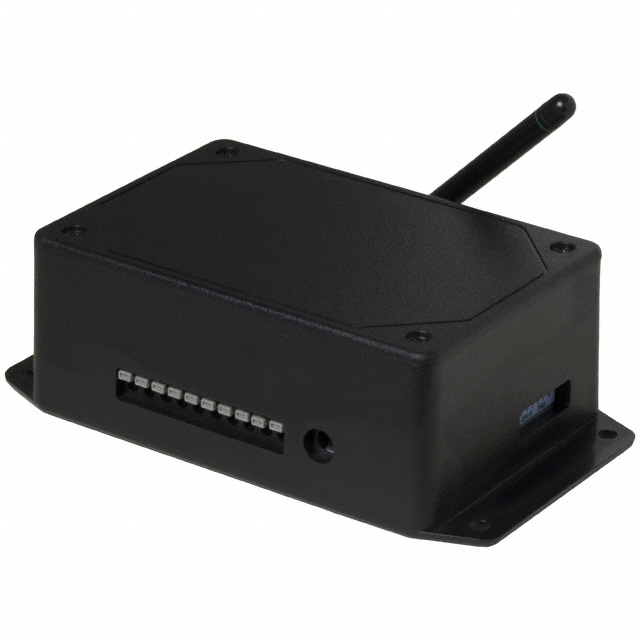

TE Connectivity AMP Connectors FCTN-RLY4-315-2	16 V	5 V	Garage Opener General Remote Control RKE	Receiver Relay	Receiver Latched Output	-112 dBm	4 Latched Outputs Dual Power Inputs	ASK OOK	315 MHz	1.2 kbps

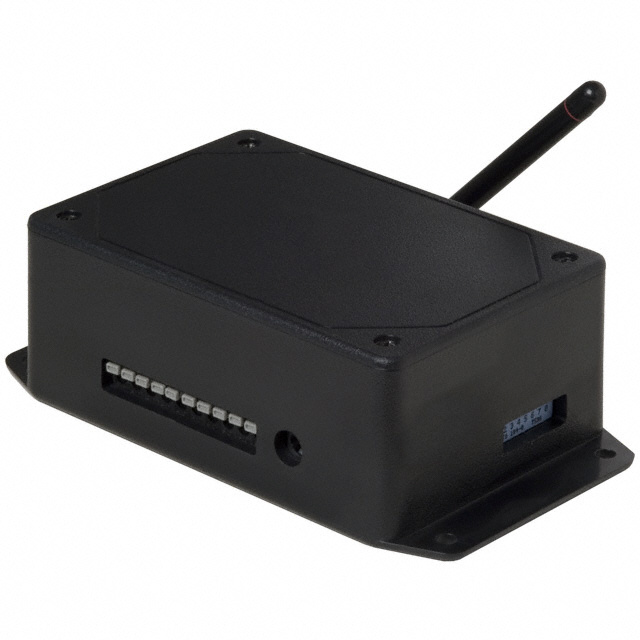

TE Connectivity AMP Connectors FCTN-RLY4-433-2	16 V	5 V	Garage Opener General Remote Control RKE	Receiver Relay	Receiver Latched Output	-112 dBm	4 Latched Outputs Dual Power Inputs	ASK OOK	433 MHz	1.2 kbps

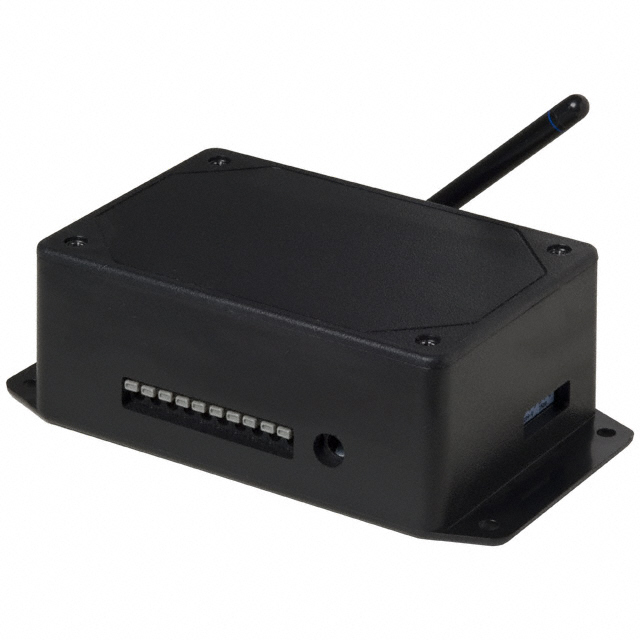

TE Connectivity AMP Connectors FCTN-RLY4-418	16 V	5 V	Garage Opener General Remote Control RKE	Receiver Relay	Receiver Latched Output	-112 dBm	4 Latched Outputs Dual Power Inputs	ASK OOK	418 MHz	1.2 kbps
TE Connectivity AMP Connectors FCTN-RLY4-418-MOM	16 V	5 V	General Purpose	Receiver		-118 dBm			418 MHz
