Q80SV Series

Catalog

14.4-170VIN, 5VOUT, 150W, EN5015

Part	Voltage - Input (Max) [Max]	Power (Watts)	Approval Agency	Mounting Type	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Isolation	Applications	Number of Outputs	Control Features	Standard Number	Supplier Device Package	Voltage - Input (Min) [Min]	Features	Efficiency	Type
Delta Electronics Q80SV05030PRFS	170 V	150 W	EN UL	Through Hole	Quarter Brick	30 A	85 °C	-40 C	39 mm	12.7 mm	2.39 "	60.6 mm	1.54 in	0.5 in	5 V	4.242 kV	ITE (Commercial)	1	Active High Enable	60950-1 62368-1	Quarter Brick	14.4 V	Adjustable Output Remote On/Off Remote Sense	88.3 %	Isolated Module

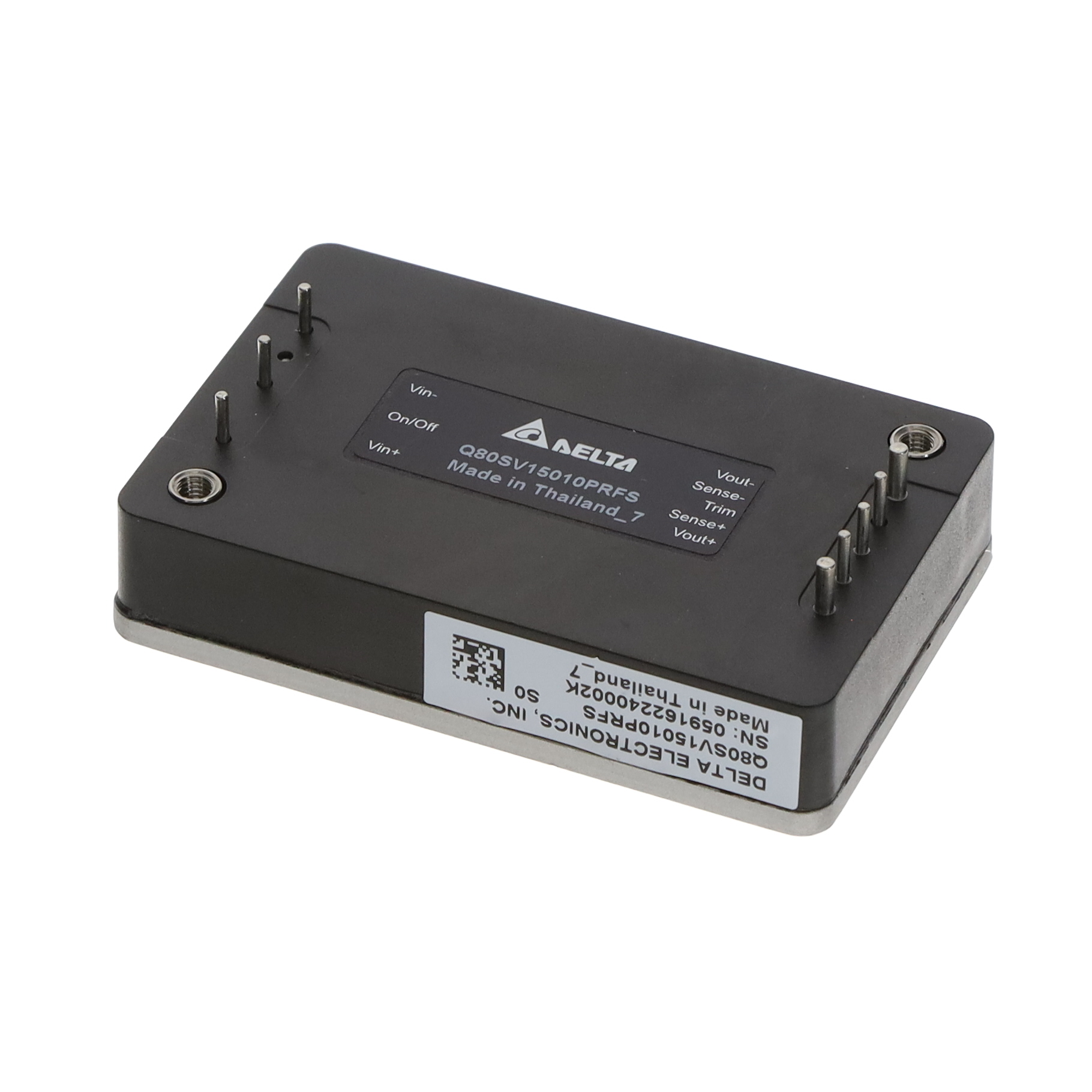

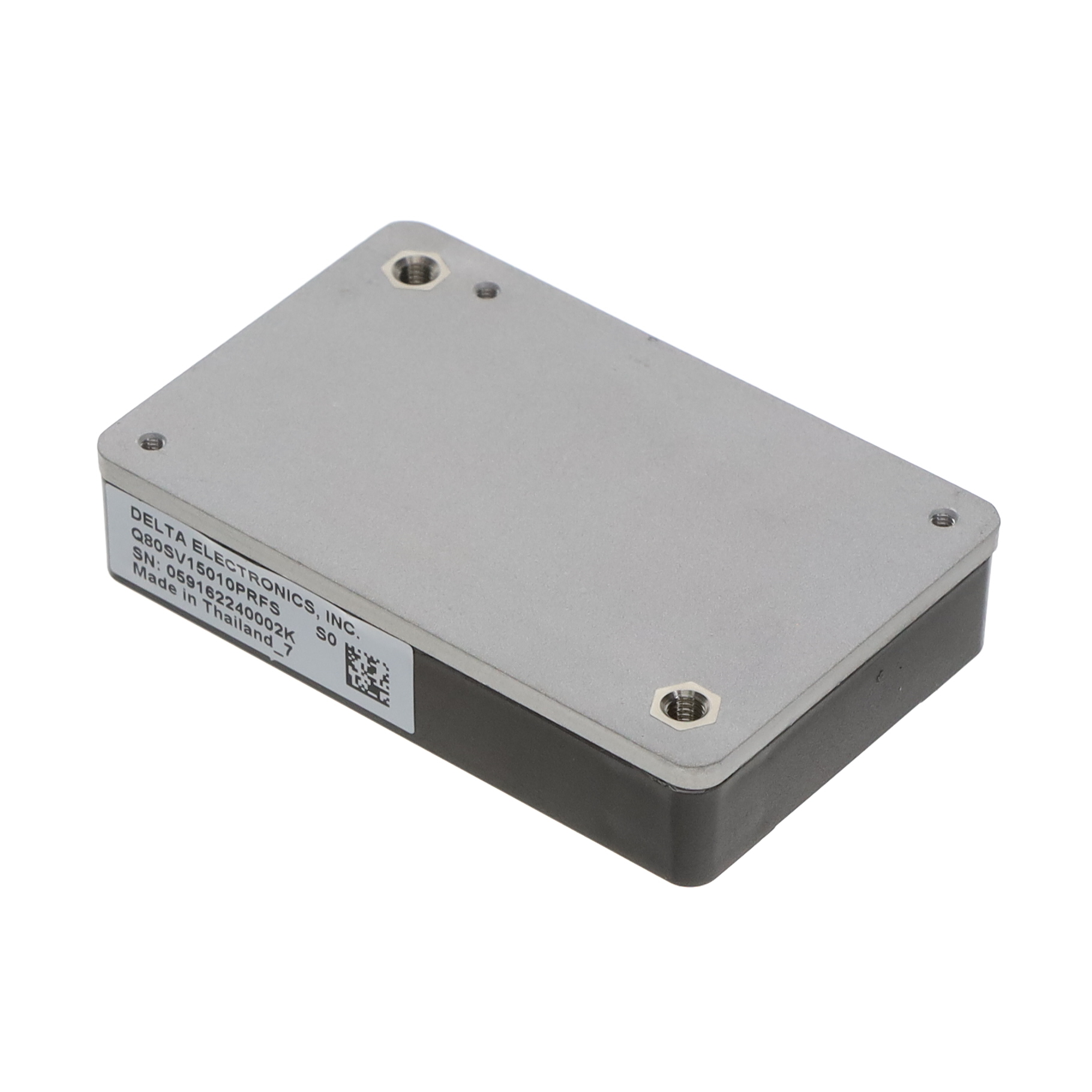

Delta Electronics Q80SV15010PRFS	170 V	150 W	EN UL	Through Hole	Quarter Brick	10 A	85 °C	-40 C	39 mm	12.7 mm	2.39 "	60.6 mm	1.54 in	0.5 in	15 V	4.242 kV	ITE (Commercial)	1	Active High Enable	60950-1 62368-1	Quarter Brick	14.4 V	Adjustable Output Remote On/Off Remote Sense		Isolated Module
Delta Electronics Q80SV24006PRFS	170 V	151 W	EN UL	Through Hole	Quarter Brick	6.3 A	85 °C	-40 C	39 mm	12.7 mm	2.39 "	60.6 mm	1.54 in	0.5 in	24 V	4.242 kV	ITE (Commercial)	1	Active High Enable	60950-1 62368-1	Quarter Brick	14.4 V	Adjustable Output Remote On/Off Remote Sense	89.3 %	Isolated Module

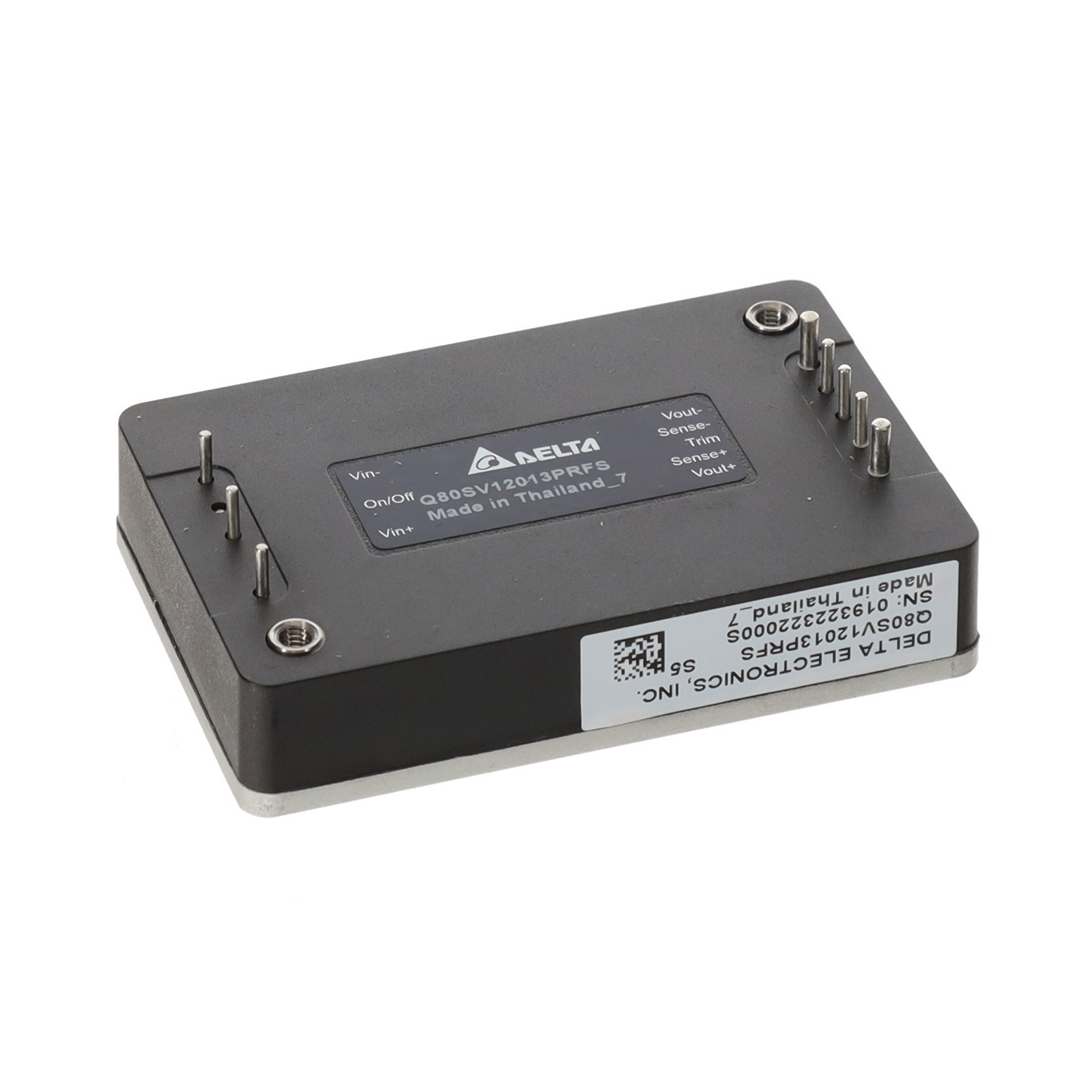

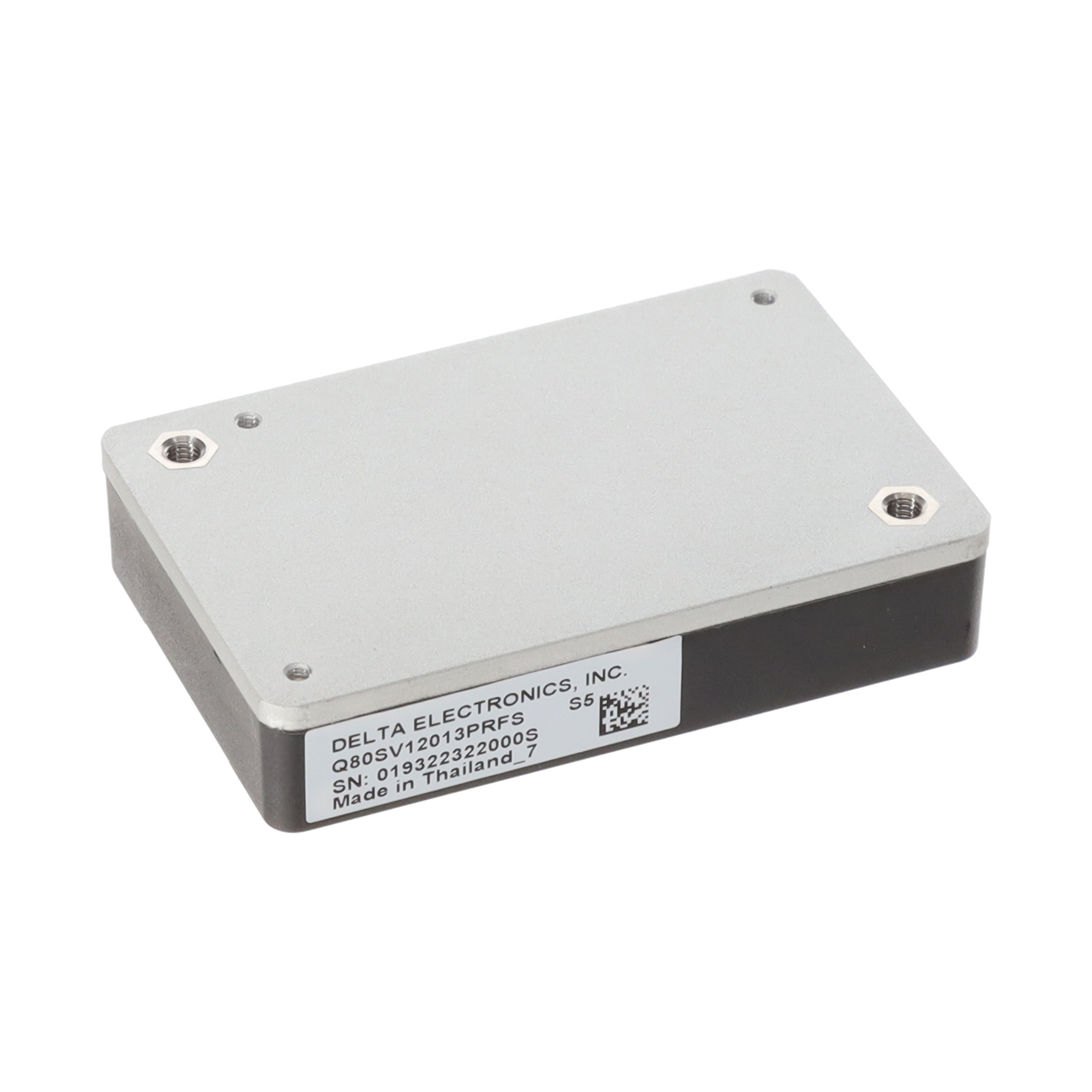

Delta Electronics Q80SV12013PRFS	170 V	150 W	EN UL	Through Hole	Quarter Brick	12.5 A	85 °C	-40 C	39 mm	12.7 mm	2.39 "	60.6 mm	1.54 in	0.5 in	12 V	4.242 kV	ITE (Commercial)	1	Active High Enable	60950-1 62368-1	Quarter Brick	14.4 V	Adjustable Output Remote On/Off Remote Sense	90 %	Isolated Module
Delta Electronics Q80SV54003PRFS	170 V	151 W	EN UL	Through Hole	Quarter Brick	2.8 A	85 °C	-40 C	39 mm	12.7 mm	2.39 "	60.6 mm	1.54 in	0.5 in	54 V	4.242 kV	ITE (Commercial)	1	Active High Enable	60950-1 62368-1	Quarter Brick	14.4 V	Adjustable Output Remote On/Off Remote Sense		Isolated Module
