S08B-PAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

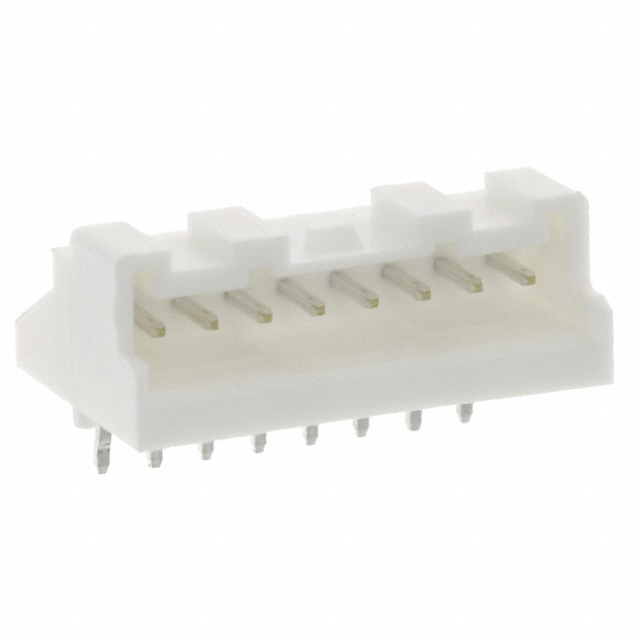

CONN HEADER R/A 8POS 2MM
| Part | Contact Finish - Post | Voltage Rating | Termination | Insulation Height | Insulation Height | Features | Number of Rows | Style | Contact Type | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Insulation Color | Insulation Material | Fastening Type | Contact Shape | Current Rating (Amps) | Shrouding | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material Flammability Rating | Number of Positions | Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | 250 V | Kinked Pin Solder | 0.256 in | 6.5 mm | Board Guide | 1 | Board to Cable/Wire | Male Pin | All | 0.134 " | 3.4 mm | 0.126 in | 3.2 mm | Natural | Polybutylene Terephthalate (PBT) Glass Filled | Locking Ramp | Square | 3 A | Shrouded - 4 Wall | 0.079 " | 2 mm | 85 °C | -25 °C | Right Angle Through Hole | UL94 V-0 | 8 | Copper Alloy | Header |
