3RP2540 Series

Manufacturer: Siemens

Catalog

RELAY TIME DELAY 600SEC 3A 250V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Mounting Type	Delay Time [Min]	Delay Time [Max]	Timing Initiate Method	Contact Rating @ Voltage	Function	Timing Adjustment Method	Relay Type	Circuit	Voltage - Supply
Siemens 3RP25402AW30	240 VAC	12 VAC	Spring Terminal	DIN Rail	0.05 Sec	600 Sec	Input Voltage	3 A 250 VAC	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)
Siemens 3RP25402AB30			Spring Terminal	DIN Rail	0.05 Sec	600 Sec	Input Voltage	3 A 250 VAC	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)	24 VAC
Siemens 3RP25402BB30			Spring Terminal	DIN Rail	0.05 Sec	600 Sec	Input Voltage	3 A 250 VAC	Off-Delay	Screwdriver Slot	Mechanical Relay	DPDT (2 Form C)	24 VAC
Siemens 3RP25401AB30			Screw Terminal	DIN Rail	0.05 Sec	600 Sec	Input Voltage	3 A 250 VAC	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)	24 VAC

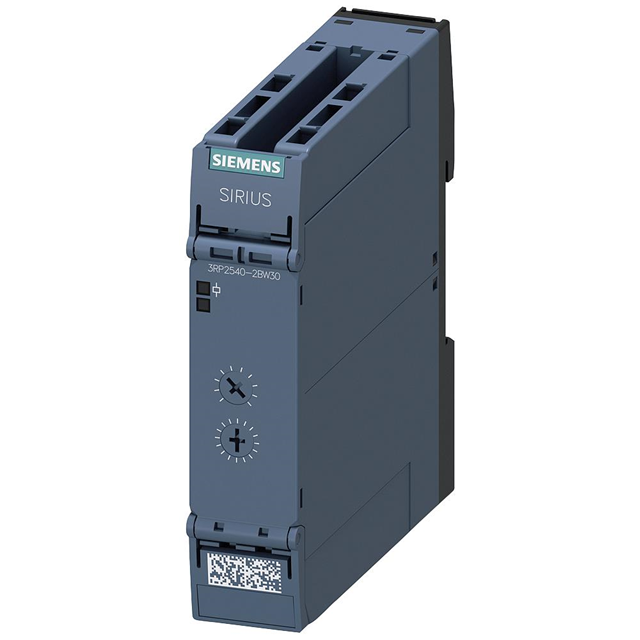

Siemens 3RP25402BW30	240 VAC	12 VAC	Spring Terminal	DIN Rail	0.05 Sec	600 Sec	Input Voltage	3 A 250 VAC	Off-Delay	Screwdriver Slot	Mechanical Relay	DPDT (2 Form C)
