LLXN Series

Catalog

POWER INDUCTORS - SMD INDUCTOR, LOW PROFILE WOUND, 3.3UH+/-20%, T&R

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Inductance	Tolerance	Material - Core	Current Rating (Amps)	Shielding	Inductance Frequency - Test	Package / Case	DC Resistance (DCR)	Current - Saturation (Isat)	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Supplier Device Package	Height - Seated (Max) [Max]	Package / Case
Taiyo Yuden LLXND5050XAT3R3MMG	-25 °C	125 °C	Surface Mount	3.3 µH	20 %	Ferrite	3 A	Unshielded	100 kHz	Nonstandard	39 mOhm	3.6 A	Wirewound	4.9 mm	4.9 mm	0.193 in	0.193 in	36 MHz	0.122 in	3.1 mm
Taiyo Yuden LLXNH8080YKL101MJG	-25 °C	125 °C	Surface Mount	100 µH	20 %	Ferrite	1 A	Shielded	100 kHz	3131 (8080 Metric)	280 mOhm	1.1 A	Wirewound	8 mm	8 mm	0.315 in	0.315 in	6 MHz			4 mm	0.157 in	3131

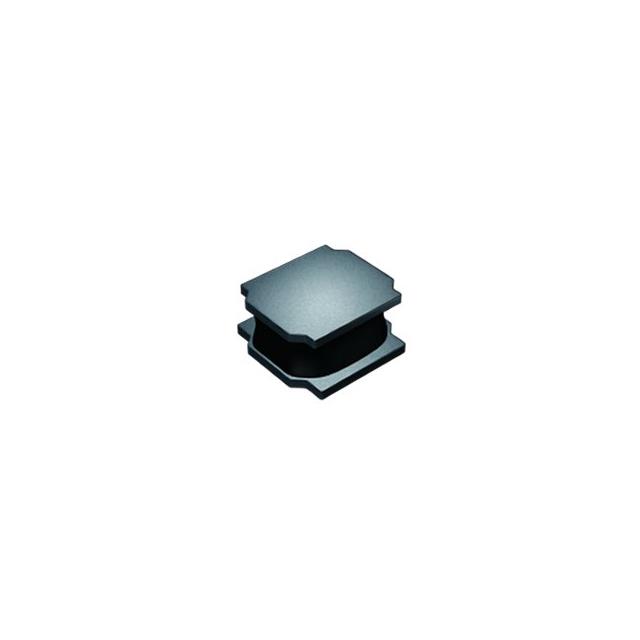

Taiyo Yuden LLXNH8080YKL220MJG	-25 °C	125 °C	Surface Mount	22 µH	20 %	Ferrite	2.2 A	Shielded	100 kHz	3131 (8080 Metric)	66 mOhm	2.4 A	Wirewound	8 mm	8 mm	0.315 in	0.315 in	13 MHz			4 mm	0.157 in	3131
Taiyo Yuden LLXND4040MKL100MDG	-25 °C	125 °C	Surface Mount	10 µH	20 %	Ferrite	1.1 A	Shielded	100 kHz	1616 (4040 Metric)	170 mOhm	800 mA	Wirewound	4 mm	4 mm	0.157 "	0.157 in	30 MHz	0.047 "	1.2 mm			1616
Taiyo Yuden LLXND2020MKT3R3M0G	-25 °C	125 °C	Surface Mount	3.3 µH	20 %	Ferrite	1.02 A	Shielded	100 kHz	Nonstandard	190 mOhm	1 A	Wirewound	2 mm	2 mm	0.079 in	0.079 in		0.047 "	1.2 mm
Taiyo Yuden LLXND4040KKL6R8MDG	-25 °C	125 °C	Surface Mount	6.8 µH	20 %	Ferrite	1 A	Shielded	100 kHz	1616 (4040 Metric)	200 mOhm	800 mA	Wirewound	4 mm	4 mm	0.157 "	0.157 in	38 MHz				0.039 in	1616	1 mm
Taiyo Yuden LLXNE3030KKT3R3MN	-25 °C	125 °C	Surface Mount	3.3 µH	20 %	Ferrite	1.03 A	Shielded	100 kHz	1212	130 mOhm	1 A	Wirewound	3 mm	3 mm	0.118 in	0.118 "	64 MHz				0.039 in	1212	1 mm	3030 Metric
Taiyo Yuden LLXND4040MKL2R2MDG	-25 °C	125 °C	Surface Mount	2.2 µH	20 %	Ferrite	1.9 A	Shielded	100 kHz	1616 (4040 Metric)	60 mOhm	1.65 A	Wirewound	4 mm	4 mm	0.157 "	0.157 in		0.047 "	1.2 mm			1616
Taiyo Yuden LLXND4040MKL4R7MDG	-25 °C	125 °C	Surface Mount	4.7 ÁH	20 %	Ferrite	1.5 A	Shielded	100 kHz	1616 (4040 Metric)	95 mOhm	1.2 A	Wirewound	4 mm	4 mm	0.157 "	0.157 in	45 MHz	0.047 "	1.2 mm			1616
Taiyo Yuden LLXNE3030MKT100MN	-25 °C	125 °C	Surface Mount	10 µH	20 %	Ferrite	0.72 A	Shielded	100 kHz	1212	270 mOhm	730 mA	Wirewound	3 mm	3 mm	0.118 in	0.118 "	32 MHz	0.047 "	1.2 mm			1212		3030 Metric
