TSM048 Series
Manufacturer: Taiwan Semiconductor Corporation
Beta
⌘K

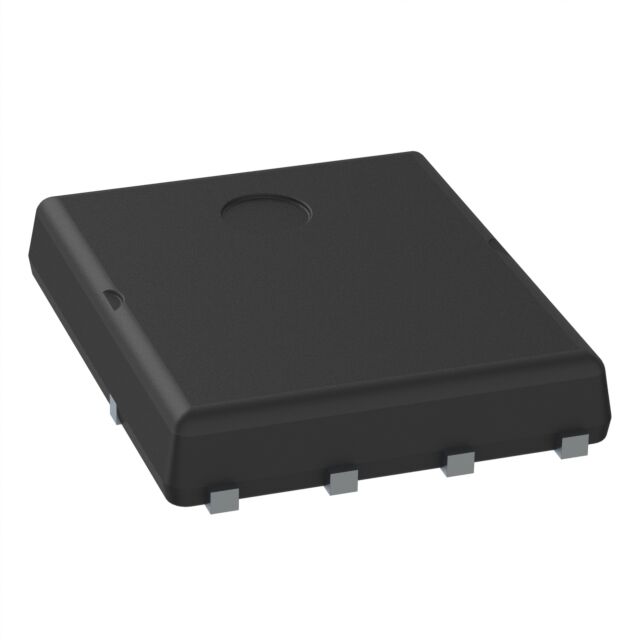

MOSFET N-CH 60V 16A/107A 8PDFN
| Part | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs | Technology | Package / Case | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Power Dissipation (Max) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | Surface Mount | 6253 pF | N-Channel | 4.5 V 10 V | 16 A 107 A | 2.5 V | 4.8 mOhm | 60 V | 20 V | 105 nC | MOSFET (Metal Oxide) | 8-PowerLDFN | 8-PDFN | 5.2 | 5.75 | 3.1 W 136 W | 175 °C | -55 °C |
