FKCOR Series

Catalog

PLUGGABLE TERMINAL BLOCKS FKCOR2,5/24-STF-5,08

Part	Wire Strip Length	Insulation Height	Insulation Height	Material Flammability Rating	Housing Material	Pitch	Pitch	Number of Levels	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - UL	Plug Wire Entry	Contact Mating Finish	Current - IEC	Features	Mounting Type	Positions Per Level [custom]	Type	Termination Style	Color	Voltage - IEC	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level

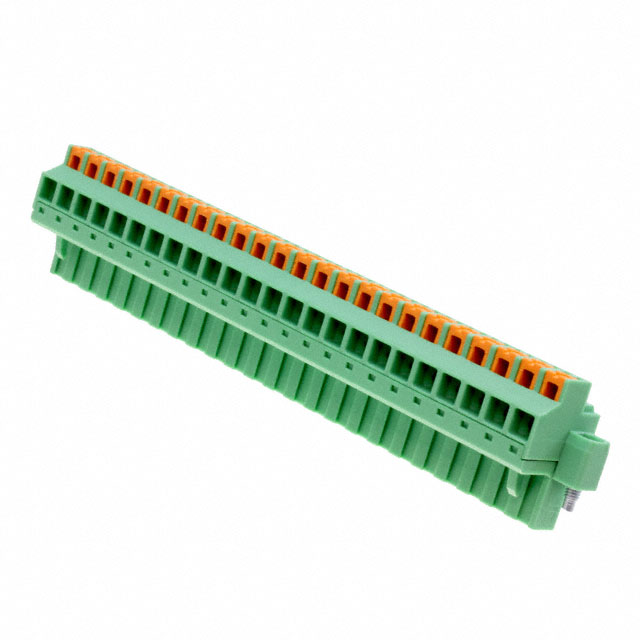

Phoenix Contact 1861687	10 mm	0.933 "	23.7 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	1	24	2.5 mm²	0.2 mm²	12 A	90 °	Tin	12 A	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	24	Plug Female Sockets	Push-In Spring Screwless - Leg Spring	Green	320 V	300 V	12 AWG	26 AWG

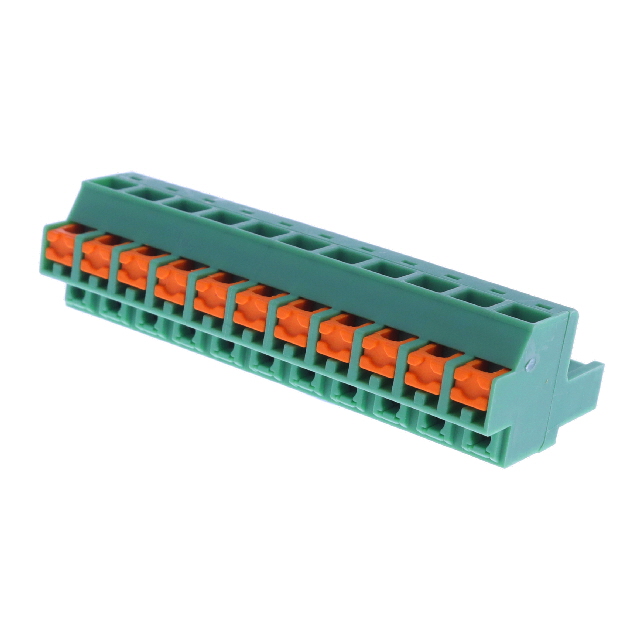

Phoenix Contact 1861328	10 mm	0.933 "	23.7 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	1	11	2.5 mm²	0.2 mm²	12 A	90 °	Tin	12 A	Lever Actuated Retention Latches (Wire Side)	Free Hanging (In-Line)		Plug Female Sockets	Push-In Spring Screwless - Leg Spring	Green	320 V	300 V	12 AWG	26 AWG	2.5 mm˛	0.2 mm˛	11

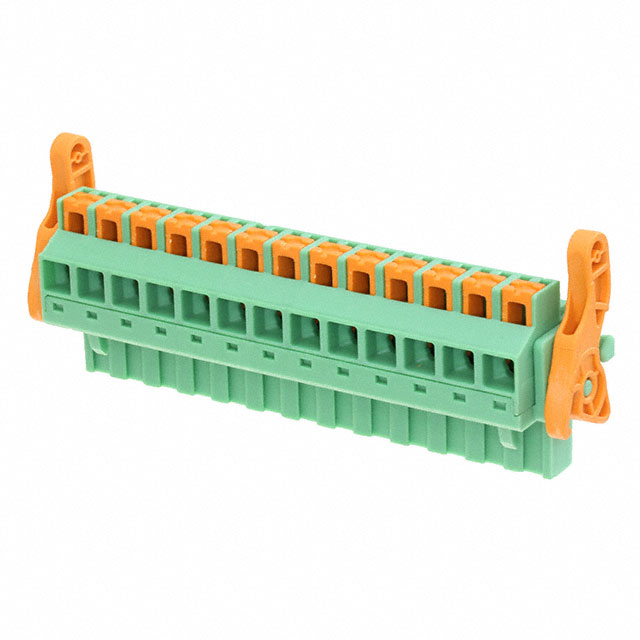

Phoenix Contact 1861807	10 mm	1.146 in	29.1 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	1	13	2.5 mm²	0.2 mm²	12 A	90 °	Tin	12 A	Ejector Latches Lever Actuated Retention Latches (Wire Side)	Free Hanging (In-Line)		Plug Female Sockets	Push-In Spring Screwless - Leg Spring	Green	320 V	300 V	12 AWG	26 AWG	2.5 mm˛	0.2 mm˛	13

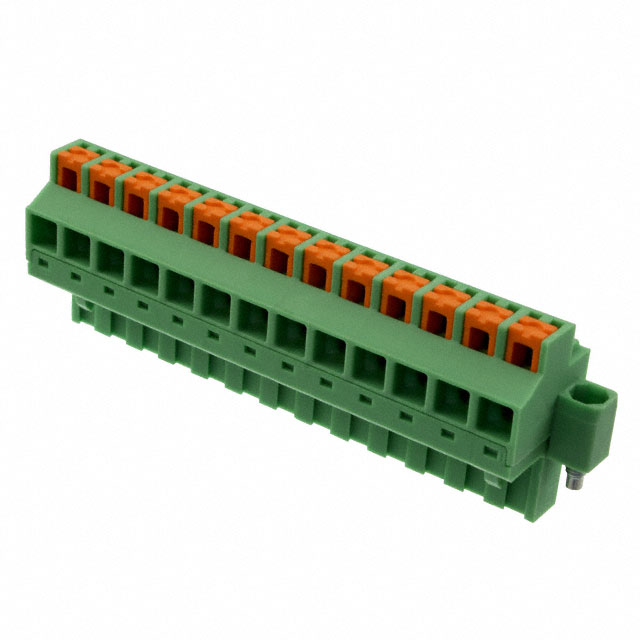

Phoenix Contact 1861577	10 mm	0.933 "	23.7 mm	UL94 V-0	Polyamide (PA) Nylon	5.08 mm	0.2 in	1	13	2.5 mm²	0.2 mm²	12 A	90 °	Tin	12 A	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Free Hanging (In-Line)		Plug Female Sockets	Push-In Spring Screwless - Leg Spring	Green	320 V	300 V	12 AWG	26 AWG	2.5 mm˛	0.2 mm˛	13
