AD5390 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

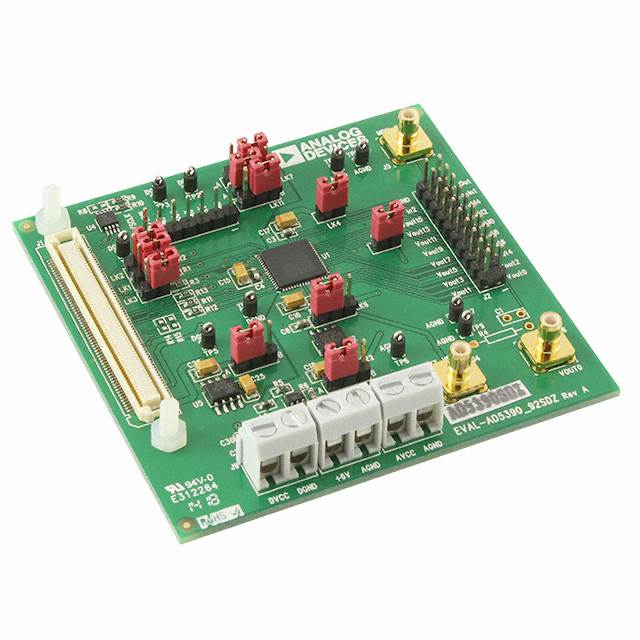

EVAL BOARD FOR AD5390SDZ

Part	Settling Time	Supplied Contents	Utilized IC / Part	Number of Bits	Data Interface	DAC Type	Contents	Number of DAC's	Package / Case	Mounting Type	Package Length	Package Name	Package Width	Differential Output	Operating Temperature (Min)	Operating Temperature (Max)	Architecture	Number of D/A Converters	Voltage - Supply, Analog	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Output Type	Reference Type	DNL Minimum (LSB)	DNL (LSB) Maximum	INL (LSB) Maximum	INL (LSB) Minimum	DNL (LSB) Minimum	INL (Max) (LSB) Tolerance	DNL Maximum (LSB)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)
Analog Devices Inc./Maxim Integrated EVAL-AD5390SDZ	8 µs	Board(s)	AD5390	14 bits	I2C	Voltage	Board	16
Analog Devices Inc./Maxim Integrated AD5390BCP-3									64-VFQFN Exposed Pad CSP	Surface Mount	9 mm	64-LFCSP-VQ	9 mm
Analog Devices Inc./Maxim Integrated AD5390BSTZ-5	8 µs			14 bits	DSP I2C SPI				52-LQFP	Surface Mount	10 mm	52-LQFP	10 mm	No	-40 °C	85 °C	String DAC	16 count	5 V	2.7 V	5.5 V	Voltage - Buffered	External Internal
Analog Devices Inc./Maxim Integrated AD5390BCPZ-5	8 µs			14 bits	DSP I2C SPI				64-VFQFN Exposed Pad CSP	Surface Mount	9 mm	64-LFCSP-VQ	9 mm	No	-40 °C	85 °C	String DAC	16 count	5 V	2.7 V	5.5 V	Voltage - Buffered	External Internal	-1 LSB	2 LSB	3 LSB	-3 LSB	-1 LSB	3 LSB	2 LSB
Analog Devices Inc./Maxim Integrated AD5390BCPZ-5-REEL	8 µs			14 bits	DSP I2C SPI				64-VFQFN Exposed Pad CSP	Surface Mount	9 mm	64-LFCSP-VQ	9 mm	No	-40 °C	85 °C	String DAC	16 count	5 V	2.7 V	5.5 V	Voltage - Buffered	External Internal	-1 LSB	2 LSB	3 LSB	-3 LSB	-1 LSB	3 LSB	2 LSB
Analog Devices Inc./Maxim Integrated AD5390BCPZ-3	8 µs			14 bits	DSP I2C SPI				64-VFQFN Exposed Pad CSP	Surface Mount	9 mm	64-LFCSP-VQ	9 mm	No	-40 °C	85 °C	String DAC	16 count		2.7 V	5.5 V	Voltage - Buffered	External Internal	-1 LSB	2 LSB	4 LSB	-4 LSB	-1 LSB	4 LSB	2 LSB	2.7 V	3.6 V
Analog Devices Inc./Maxim Integrated AD5390BSTZ-3	8 µs			14 bits	DSP I2C SPI				52-LQFP	Surface Mount	10 mm	52-LQFP	10 mm	No	-40 °C	85 °C	String DAC	16 count		2.7 V	5.5 V	Voltage - Buffered	External Internal	-1 LSB	2 LSB	4 LSB	-4 LSB	-1 LSB	4 LSB	2 LSB	2.7 V	3.6 V
Analog Devices Inc./Maxim Integrated AD5390BCPZ-3-REEL7	8 µs			14 bits	DSP I2C SPI				64-VFQFN Exposed Pad CSP	Surface Mount	9 mm	64-LFCSP-VQ	9 mm	No	-40 °C	85 °C	String DAC	16 count		2.7 V	5.5 V	Voltage - Buffered	External Internal	-1 LSB	2 LSB	4 LSB	-4 LSB	-1 LSB	4 LSB	2 LSB	2.7 V	3.6 V
