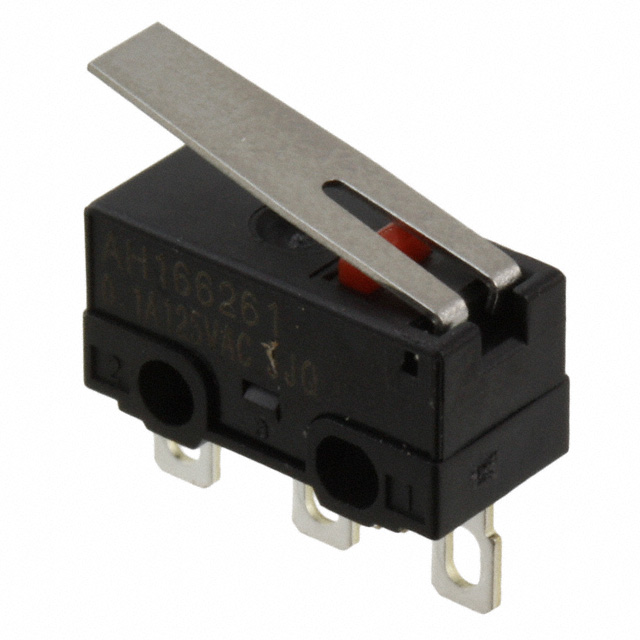

AH168261 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Voltage Rating - AC | Differential Travel | Differential Travel | Release Force | Circuit | Voltage Rating - DC | Actuator Type | Overtravel [custom] | Overtravel [custom] | Mechanical Life | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position | Electrical Life | Mounting Type | Pretravel | Pretravel | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 125 V | 0.5 mm | 0.02 in | 2.5 gf | SPDT | 30 V | Lever Straight | 0.022 " | 0.55 mm | 1000000 Cycles | 100 mA | 85 °C | -25 °C | 0.268 in | 6.8 mm | 100000 Cycles | Chassis Mount | 2.1 mm | 0.083 in | Solder Lug | On-Mom |
