KGM HV Series

Catalog

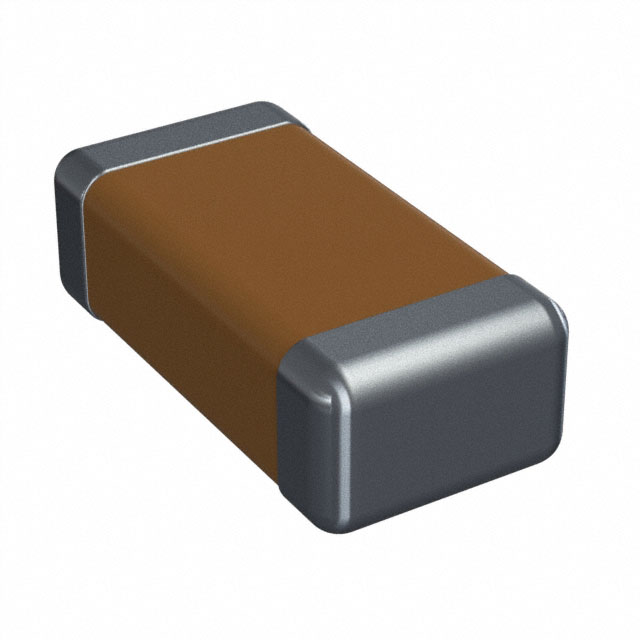

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 1500V 39PF C0G 1206 5%

Part	Temperature Coefficient	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Features	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Voltage - Rated	Tolerance	Package / Case	Thickness (Max)
KYOCERA AVX KGM31DCG3N390JL	C0G NP0	MLCC Surface Mount	General Purpose	1.6 mm	0.063 "	0.13 "	3.3 mm	1206 (3216 Metric)	High Voltage	1.45 mm	0.057 "	39 pF	-55 C	125 °C	1.5 kV	1500 V	5 %
KYOCERA AVX KGM32JR73N472KU	X7R	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	0.13 "	3.3 mm	1210	High Voltage		0.087 "	0.0047 µF	-55 C	125 °C	1.5 kV	1500 V	10 %	3225 Metric	2.21 mm
KYOCERA AVX KGM32LR73D332KU	X7R	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	0.13 "	3.3 mm	1210	High Voltage	2.8 mm	0.11 in	0.0033 µF	-55 C	125 °C	2 kV	2000 V	10 %	3225 Metric
KYOCERA AVX KGM32HR72J393KU	X7R	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	0.13 "	3.3 mm	1210	High Voltage	1.8 mm	0.071 in	0.039 µF	-55 C	125 °C		630 V	10 %	3225 Metric
KYOCERA AVX KGM31DCG2J390GU	C0G NP0	MLCC Surface Mount	General Purpose	1.6 mm	0.063 "	0.13 "	3.3 mm	1206 (3216 Metric)	High Voltage	1.45 mm	0.057 "	39 pF	-55 C	125 °C		630 V	2 %
KYOCERA AVX KGM31DCG3A101MU	C0G NP0	MLCC Surface Mount	General Purpose	1.6 mm	0.063 "	0.13 "	3.3 mm	1206 (3216 Metric)	High Voltage	1.45 mm	0.057 "	100 pF	-55 C	125 °C	1 kV	1000 V	20 %
KYOCERA AVX KGM31DCG3A151MU	C0G NP0	MLCC Surface Mount	General Purpose	1.6 mm	0.063 "	0.13 "	3.3 mm	1206 (3216 Metric)	High Voltage	1.45 mm	0.057 "	150 pF	-55 C	125 °C	1 kV	1000 V	20 %
KYOCERA AVX KGM21AR73A101KU	X7R	MLCC Surface Mount	General Purpose	1.25 mm	0.049 "	0.083 "	2.1 mm	0805	High Voltage	1.45 mm	0.057 "	100 pF	-55 C	125 °C	1 kV	1000 V	10 %
