SPHWH1 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

Catalog

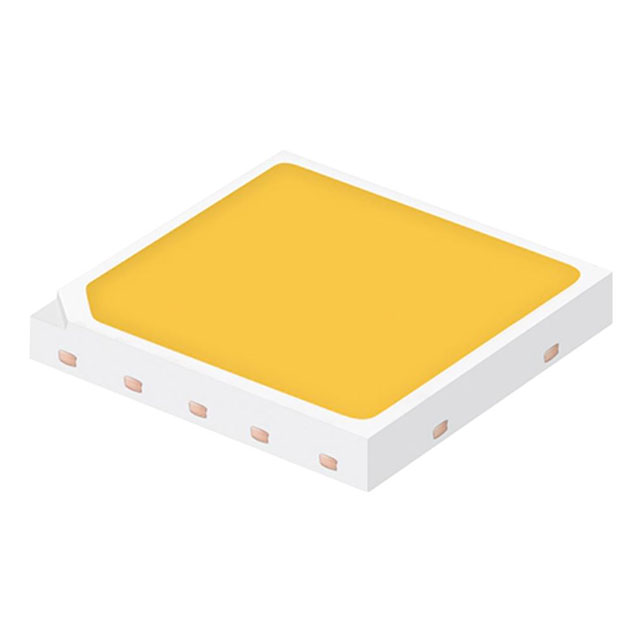

LED LH508A+ WARM WHT 3000K SMD

...

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max)	Supplier Device Package	Color	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Viewing Angle	CCT (K)	CCT (K)	Voltage - Forward (Vf) (Typ)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Current - Test
Samsung Semiconductor, Inc. SPHWH1L5N603XEV5A2	3 °C/W	70	0.031 in	0.8 mm	SMD	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	220 mA	120 °	3000 K	5-Step MacAdam Ellipse	24.5 V	2020 (5050 Metric)
Samsung Semiconductor, Inc. SPHWH1L5N407XEV3A1	1.9 °C/W	90			SMD	Warm White	Surface Mount	0.204 in	0.197 "	5 mm	5.18 mm	240 mA	116 °	3000 K	3-Step MacAdam Ellipse	25 V	2020	0.7 mm	0.028 "	5250 Metric	111 lm/W	444 lm
Samsung Semiconductor, Inc. SPHWH1L5N607YER3A1	3 °C/W	90	0.031 in	0.8 mm	SMD	Cool White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	880 mA	120 °	5000 K	3-Step MacAdam Ellipse	6.1 V	2020 (5050 Metric)				135 lm/W	526 lm	640 mA
Samsung Semiconductor, Inc. SPHWH1L5N605XET5A1	3 °C/W	80	0.031 in	0.8 mm	SMD	Neutral White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	220 mA	120 °	4000 K		24.5 V	2020 (5050 Metric)				156 lm/W	610 lm
Samsung Semiconductor, Inc. SPHWH1L5N605XEU3A2	3 °C/W	80	0.031 in	0.8 mm	SMD	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	220 mA	120 °	3500 K	3-Step MacAdam Ellipse	24.5 V	2020 (5050 Metric)
Samsung Semiconductor, Inc. SPHWH1L5N605YEY3A4	3 °C/W	80	0.031 in	0.8 mm	2020	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	880 mA	120 °	2200 K	3-Step MacAdam Ellipse	6.1 V	2020 (5050 Metric)				126 lm/W	490 lm	640 mA
Samsung Semiconductor, Inc. SPHWH1L5N603YEV3A2	3 °C/W	70	0.031 in	0.8 mm	SMD	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	880 mA	120 °	3000 K	3-Step MacAdam Ellipse	6.1 V	2020 (5050 Metric)						640 mA
Samsung Semiconductor, Inc. SPHWH1L5N605YEV3A1	3 °C/W	80	0.031 in	0.8 mm	SMD	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	880 mA	120 °	3000 K	3-Step MacAdam Ellipse	6.1 V	2020 (5050 Metric)				150 lm/W	585 lm	640 mA
Samsung Semiconductor, Inc. SPHWH1L5N607YEV5A1	3 °C/W	90	0.031 in	0.8 mm	SMD	Warm White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	880 mA	120 °	3000 K	5-Step MacAdam Ellipse	6.1 V	2020 (5050 Metric)					486 lm	640 mA
Samsung Semiconductor, Inc. SPHWH1L5N605XER5A2	3 °C/W	80	0.031 in	0.8 mm	SMD	Cool White	Surface Mount	0.197 in	0.197 "	5 mm	5 mm	220 mA	120 °	5000 K	5-Step MacAdam Ellipse	24.5 V	2020 (5050 Metric)
