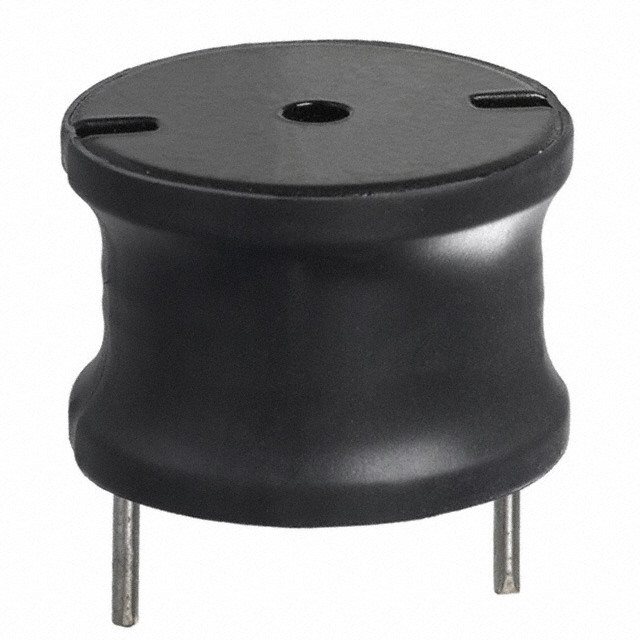

1140 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 3.3MH 2.8A 773 MOHM TH
| Part | Type | Current Rating (Amps) | Tolerance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Shielding | Material - Core | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Inductance Frequency - Test | Inductance | Current - Saturation (Isat) | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Drum Core Wirewound | 2.8 A | 10 % | Through Hole | -55 C | 105 ░C | 773 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 3300 µH | ||
Bourns Inc. | Drum Core Wirewound | 4.5 A | 10 % | Through Hole | -55 C | 105 ░C | 324 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 1.5 mH | ||
Bourns Inc. | Drum Core Wirewound | 900 mA | 10 % | Through Hole | -55 C | 105 ░C | 3.39 Ohm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 15 mH | 1.7 A | |
Bourns Inc. | Drum Core Wirewound | 1.6 A | 10 % | Through Hole | -55 C | 105 ░C | 1.95 Ohm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 8.2 mH | ||
 Bourns Inc. | Drum Core Wirewound | 7.4 A | 10 % | Through Hole | -55 C | 105 ░C | 50 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 220 µH | 14 A | |
Bourns Inc. | Drum Core Wirewound | 1.2 A | 10 % | Through Hole | -55 C | 105 ░C | 1.95 Ohm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 8.2 mH | 2.3 A | |
Bourns Inc. | Drum Core Wirewound | 3.6 A | 10 % | Through Hole | -55 C | 105 ░C | 216 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial | 1 kHz | 1 mH | 6.5 A | |
Bourns Inc. | Drum Core Wirewound | 5.5 Amps | 10 % | Through Hole | -55 C | 105 ░C | 216 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 1 mH | ||
Bourns Inc. | Drum Core Wirewound | 4.2 A | 10 % | Through Hole | -55 C | 105 ░C | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial Vertical Cylinder | 1 kHz | 820 µH | 7.2 A | 154 mOhm | |
Bourns Inc. | Drum Core Wirewound | 21.8 A | 10 % | Through Hole | -55 C | 105 ░C | 5 mOhm | Unshielded | Ferrite | 1.5 " | 38.1 mm | 1.03 in | 26.16 mm | Radial | 1 kHz | 10 µH | 65.3 A |
