WR9HA2000 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Region Utilized	Voltage - Output	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Power (Watts)	Current - Output (Max) [Max]	Cord Length	Cord Length	Input Type	Form	Input Connector	Output Connector	Operating Temperature [Max]	No Load Power Consumption

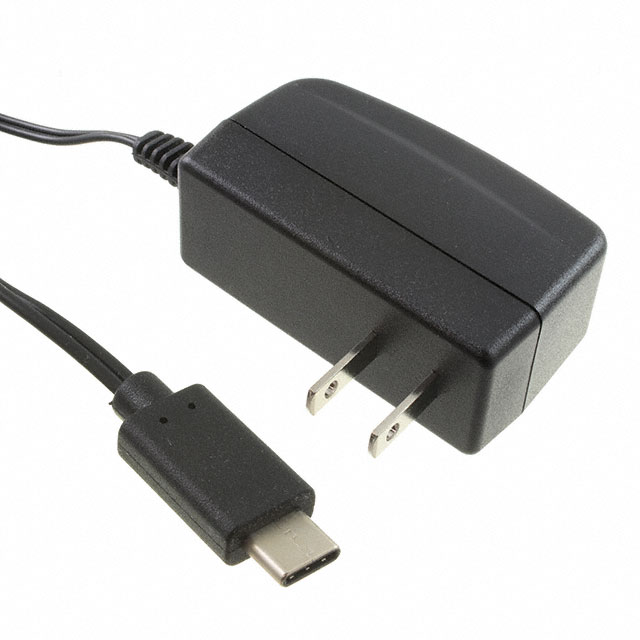

GlobTek, Inc. WR9HA2000USBCFMEDR6B	60335-1 60601-1-11 60601-1-2 62368-1	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	CB cETLus EAC ETL LPS PSE RCM UkrSEPRO VCCI	North America	5 V	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	10 W	2 A	60.2 in	1.53 m	Fixed Blade	Wall Mount	NEMA 1-15P	USB C	50 °C

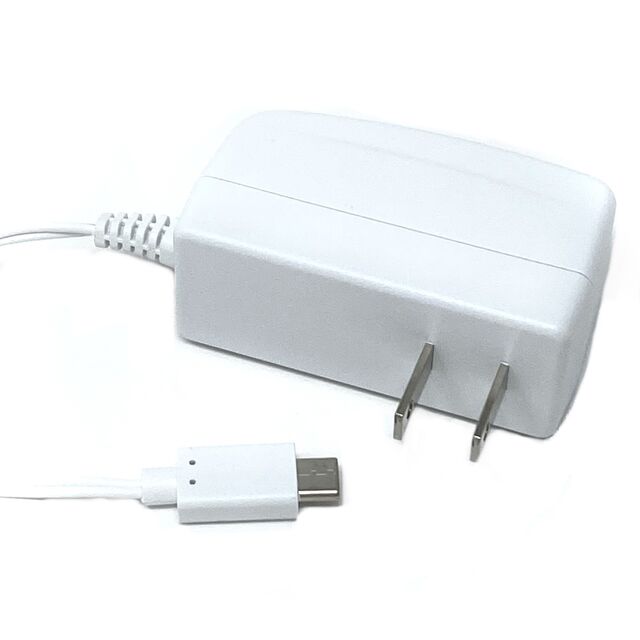

GlobTek, Inc. WR9HA2000USBCFMEDR6W	60335-1 60601-1-11 60601-1-2 62368-1	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	CB cETLus EAC ETL LPS PSE RCM UkrSEPRO VCCI	North America	5 V	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	10 W	2 A	60.2 in	1.53 m	Fixed Blade	Wall Mount	NEMA 1-15P	USB C	50 °C

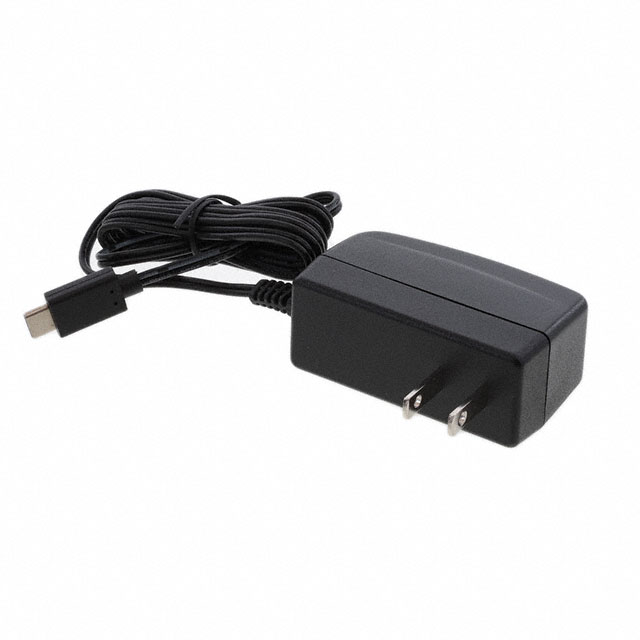

GlobTek, Inc. WR9HA2000USBC-F(R6B)	60950-1	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	North America	5 V	CoC Tier 2 Level VI	264 VAC	90 VAC	ITE (Commercial)	10 W	2 A	59 in	1.5 m	Fixed Blade	Wall Mount	NEMA 1-15P	USB C	50 °C	75 mW
GlobTek, Inc. WR9HA2000MICB-MFR6B	60335-1 60601-1-11 60601-1-2 62368-1	1.13 "	2.72 in	69 mm	40.3 mm	28.8 mm	1.59 in	CB cETLus EAC ETL LPS PSE RCM UkrSEPRO VCCI	North America	5 V	Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	10 W	2 A	60.2 in	1.53 m	Fixed Blade	Wall Mount	NEMA 1-15P	USB Micro	50 °C

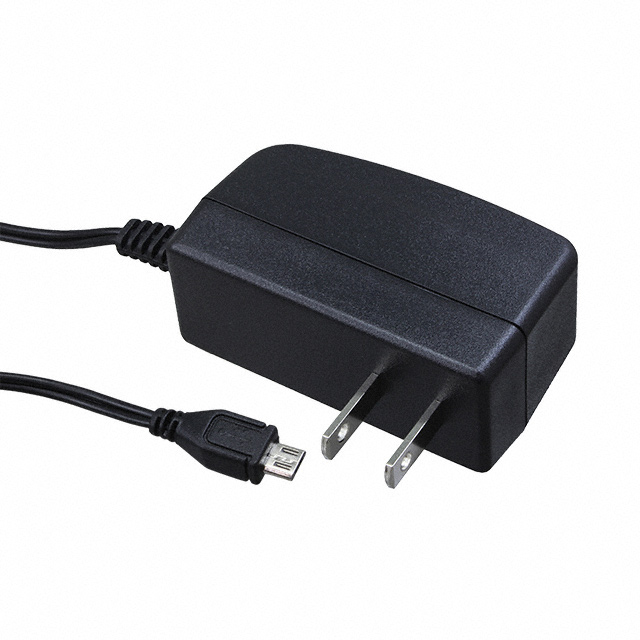

GlobTek, Inc. WR9HA2000UUSB-F(R6B)	60950-1	1.13 "	2.72 in	69 mm	40.3 mm	28.8 mm	1.59 in	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	North America	5 V	Level VI	264 VAC	90 VAC	ITE (Commercial)	10 W	2 A	60.2 in	1.53 m	Fixed Blade	Wall Mount	NEMA 1-15P	USB Micro	50 °C	75 mW
