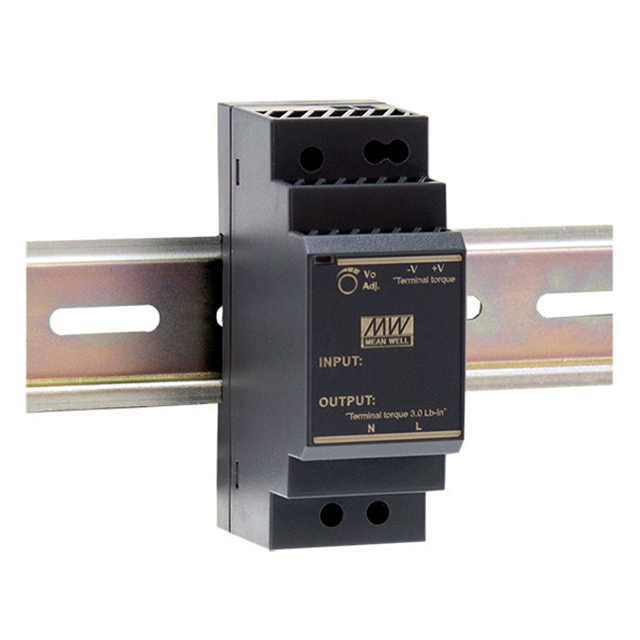

HDR-30 Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 36W

Part	Power (Watts)	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Approval Agency	Voltage - Isolation	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Min) [Min]	Applications	Input Type	Features	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. HDR-30-24	36 W	370 V	24 V	CB CE cULus cURus TUV	4000 V	1	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	264 VAC	85 VAC	120 V	Industrial ITE (Commercial)	AC or DC	Adjustable Output Universal Input	89 %	1.5 A	-30 °C	70 °C
MEAN WELL USA Inc. HDR-30-5	15 W	370 V	5 V	CB CE cULus cURus TUV	4000 V	1	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	264 VAC	85 VAC	120 V	Industrial ITE (Commercial)	AC or DC	Adjustable Output Universal Input		3 A	-30 °C	70 °C
MEAN WELL USA Inc. HDR-30-15	30 Watts	370 V	15 V	CB CE cULus cURus TUV	4000 V	1	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	264 VAC	85 VAC	120 V	Industrial ITE (Commercial)	AC or DC	Adjustable Output Universal Input	89 %	2 A	-30 °C	70 °C
MEAN WELL USA Inc. HDR-30-12	24 W	370 V	12 V	CB CE cULus cURus TUV	4000 V	1	54.5 mm	2.15 "	90 mm	1.38 in	3.54 "	35 mm	264 VAC	85 VAC	120 V	Industrial ITE (Commercial)	AC or DC	Adjustable Output Universal Input	88 %	2 A	-30 °C	70 °C
