PX0575 Series

Catalog

CONN INLET M 3 POS 9.17MM SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK

Part	Mounting Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Filter Type	Panel Thickness	Panel Thickness	Connector Type	Approval Agency	Termination	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Switch Features

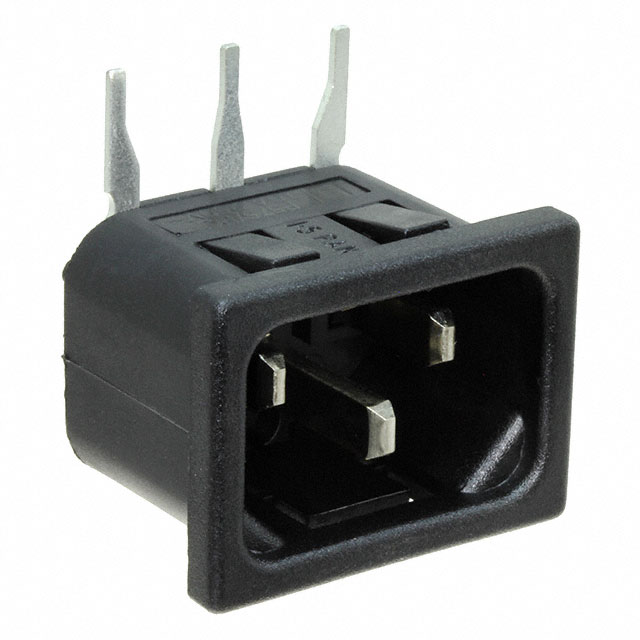

BULGIN LIMITED PX0575/15/PC	Panel Mount Right Angle Snap-In Through Hole	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1.5 mm	0.059 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Solder	IEC 320-C14	19.8 mm	27.4 mm

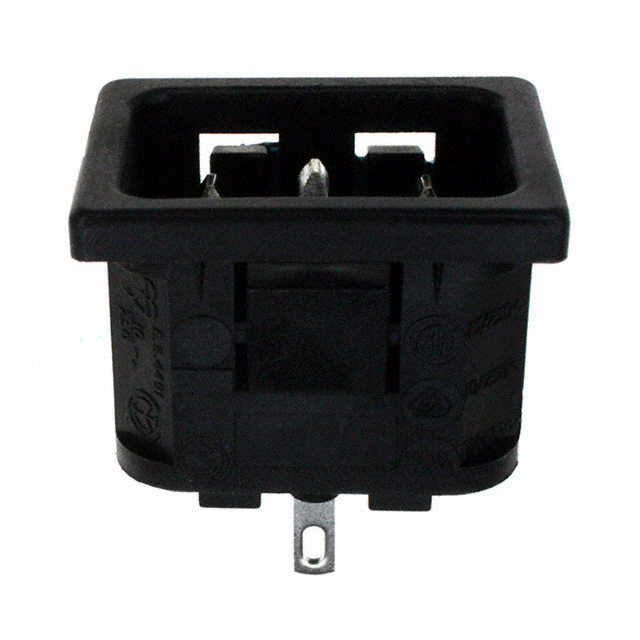

BULGIN LIMITED PX0575/15/28	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1.5 mm	0.059 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Solder	IEC 320-C14	19.8 mm	27.4 mm
BULGIN LIMITED PX0575/10/28	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1 mm	0.039 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Solder	IEC 320-C14	19.8 mm	27.4 mm
BULGIN LIMITED PX0575/15/63	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1.5 mm	0.059 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Quick Connect	IEC 320-C14	19.8 mm	27.4 mm	6.3 mm	0.25 "
BULGIN LIMITED PX0575/15/48	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1.5 mm	0.059 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Quick Connect	IEC 320-C14	19.8 mm	27.4 mm	4.8 mm	0.189 "

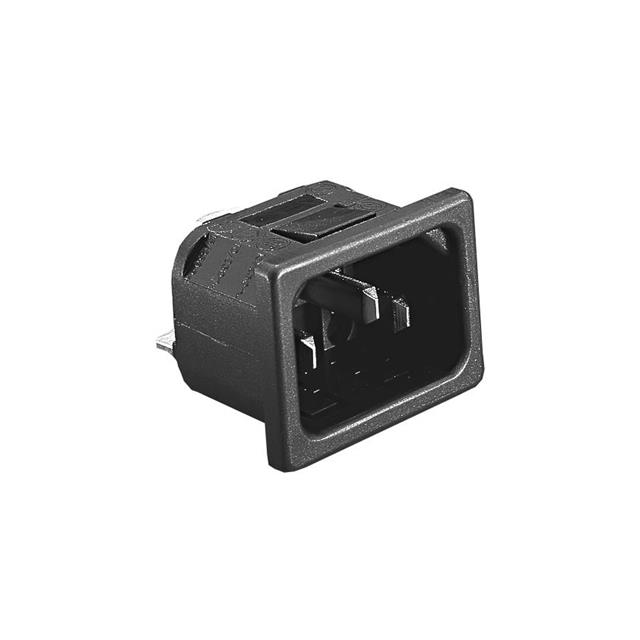

BULGIN LIMITED PX0575/30/48	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	3 mm	0.118 "	Receptacle Male Blades	CCC CSA ENEC UL VDE	Quick Connect	IEC 320-C14	19.8 mm	27.4 mm	4.8 mm	0.189 "
BULGIN LIMITED PX0575/10/63	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	1 mm	0.039 in	Receptacle Male Blades	CCC CSA ENEC UL VDE	Quick Connect	IEC 320-C14	19.8 mm	27.4 mm	6.3 mm	0.25 "

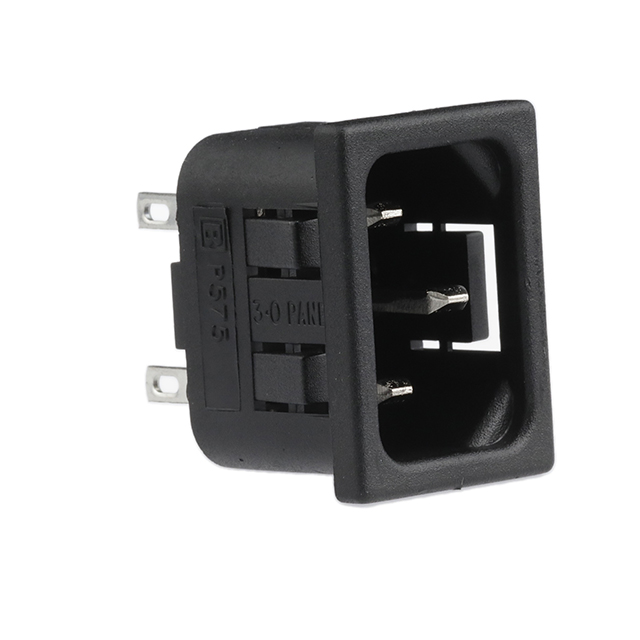

BULGIN LIMITED PX0575/30/28	Panel Mount Snap-In	UL94 V-0	250 VAC	10 A	Unfiltered - Commercial	3 mm	0.118 "	Receptacle Male Blades	CCC CSA ENEC UL VDE	Quick Connect Solder	IEC 320-C14	19.8 mm	27.4 mm	2.8 mm	0.11 "	No Breaker/Switch
