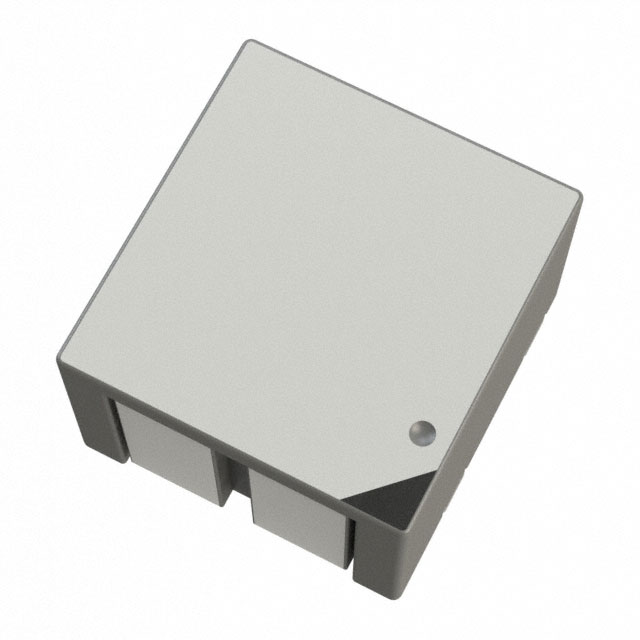

CL1108, CLA1108 Series

Catalog

COUPLED INDUCTORS CL1108400NH10A 4-PHASESMT

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Current Rating (Amps)	Inductance Frequency - Test	Inductance	DC Resistance (DCR)	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Tolerance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Eaton - Electronics Division CL1108-4-50TR-R
Eaton - Electronics Division CL1108-4-50TR-R	8 mm	0.315 in	4 Phase	80 A	1 MHz	50 nH	0.28 mOhm	Ferrite	36 mm	1.417 in	11 mm	0.433 in	Surface Mount	20 %	Nonstandard	125 °C	-40 C
Eaton - Electronics Division CLA1108-3-50TR-R	8 mm	0.315 in	3 Phase	80 A	1 MHz	50 nH	0.28 mOhm	Ferrite	27 mm	1.063 in	11 mm	0.433 in	Surface Mount	20 %	Nonstandard	125 °C	-40 C
