TR9CZ3158 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

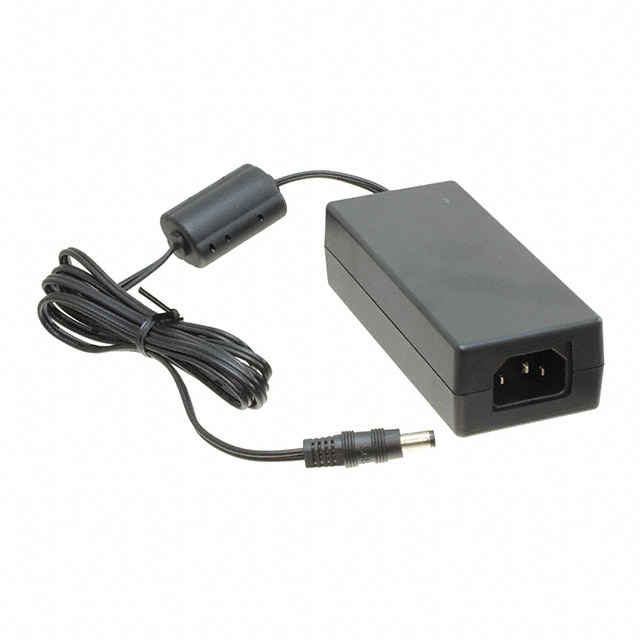

AC/DC DESKTOP ADAPTER 19V 60W
| Part | Voltage - Output | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Form | Efficiency | Input Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | No Load Power Consumption | Polarization | Power (Watts) | Output Connector [diameter] | Output Connector | Output Connector [x] | Input Connector | Standard Number | Region Utilized | Cord Length | Cord Length | Approval Agency | Applications | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 19 V | 3.15 A | 40 °C | 0 °C | Desktop (Class I) | Level VI | Cord (Sold Separately) | 1.3 in | 121 mm | 4.76 " | 2.05 in | 33 mm | 52 mm | 150 mW | Positive Center | 60 W | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | IEC 320-C14 | 60335-1 60950-1 | International | 1.5 m | 59 in | BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UkrSEPRO VCCI | Household Appliances ITE (Commercial) | 264 VAC | 90 VAC |
