FR01SC16 Series

Catalog

SWITCH DIP N.O./N.C. SP16T 16 DIAL 0.1A 5VDC PC PINS 625CYCLES THRU-HOLE TUBE

Part	Length [x]	Length [x]	Electrical Life	Mechanical Life	Body Material	Contact Finish	Number of Positions	Termination Style	Contact Material	Actuator Type	Circuit	Washable	Voltage Rating	Mounting Type	Pitch	Pitch	Current Rating (Amps)	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]

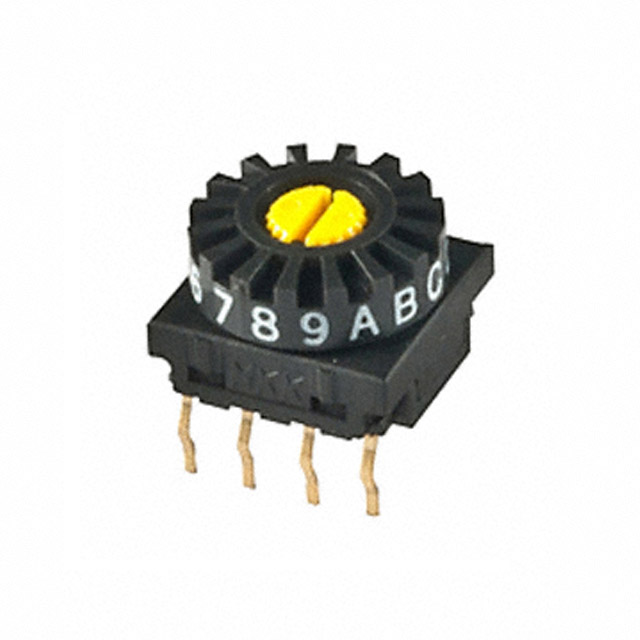

NKK Switches FR01SC16P-S	0.394 in	10 mm	10000 Cycles	10000 Steps	Polyamide (PA) Nylon Glass Filled	Gold	16	PC Pin	Copper Alloy	Rotary with Knob	Hexadecimal Complement		5 V	Through Hole	2.54 mm	0.1 "	100 mA	Raised	85 °C	-25 °C	0.284 in	7.21 mm
NKK Switches FR01SC16P	0.394 in	10 mm	10000 Cycles	10000 Steps	Polyamide (PA) Nylon Glass Filled	Gold	16	PC Pin	Copper Alloy	Rotary with Knob	Hexadecimal Complement		5 V	Through Hole	2.54 mm	0.1 "	100 mA	Raised	85 °C	-25 °C	0.284 in	7.21 mm
