9260-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

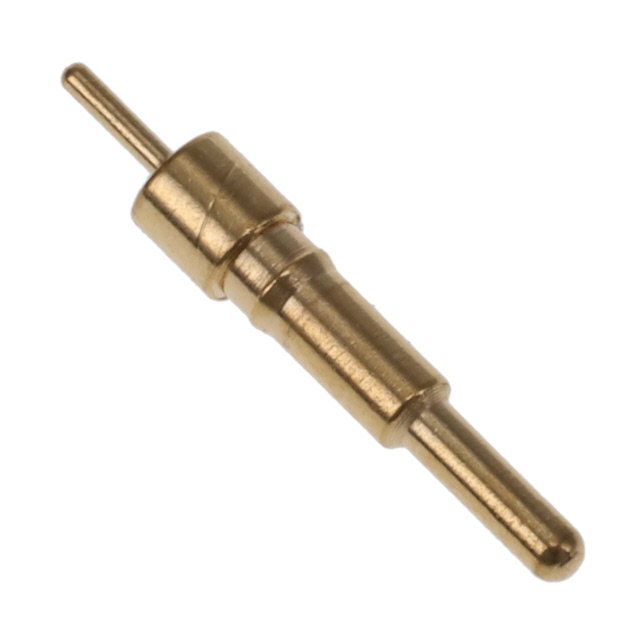

DOUBLE TAIL HEADER PIN
| Part | Insulation | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Contact Finish | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall | Length - Overall | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Press-Fit | 0.48 mm | 0.019 in | 1.45 mm | 0.057 in | PC Pin | Gold | Double End | 2.36 mm | 0.093 " | 0.25 Ám | 10 Áin | Through Hole | 0.268 in | 6.81 mm | 10.87 mm | 0.428 " | Brass Alloy | 0.072 " | 1.83 mm |
