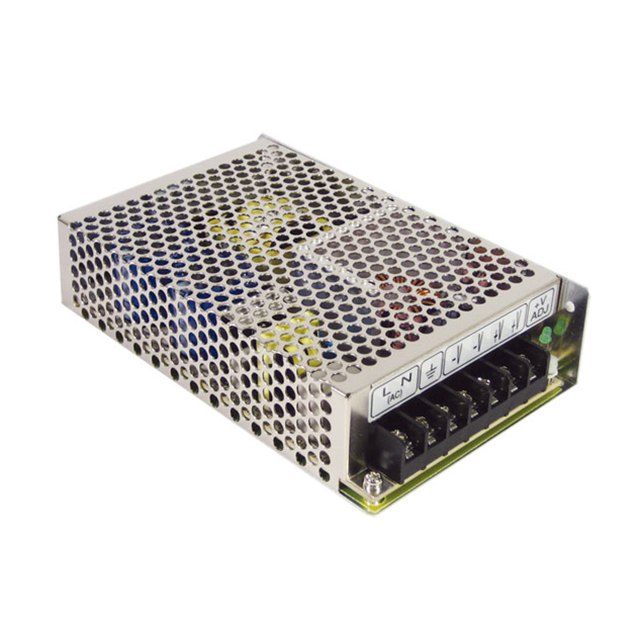

RS-100 Series

Catalog

AC/DC CONVERTER 5V 80W

Part	Features	Type	Approval Agency	Voltage - Output 1	Applications	Efficiency	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Power (Watts)	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]
MEAN WELL USA Inc. RS-100-5	Adjustable Output Universal Input	Enclosed	CB CE cURus TUV	5 V	ITE (Commercial)	77 %	16 A	70 °C	-25 °C	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	3000 V	Chassis Mount	80 W	1	88 VAC 125 VDC	264 VAC 373 VDC
MEAN WELL USA Inc. RS-100-24	Adjustable Output Universal Input	Enclosed	CB CE cURus TUV	24 V	ITE (Commercial)	84 %	4.5 A	70 °C	-25 °C	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	3000 V	Chassis Mount	108 W	1	88 VAC 125 VDC	264 VAC 373 VDC
MEAN WELL USA Inc. RS-100-3.3	Adjustable Output Universal Input	Enclosed	CB CE cURus TUV	3.3 V	ITE (Commercial)	74 %	20 A	70 °C	-25 °C	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	3000 V	Chassis Mount	66 W	1	88 VAC 125 VDC	264 VAC 373 VDC
