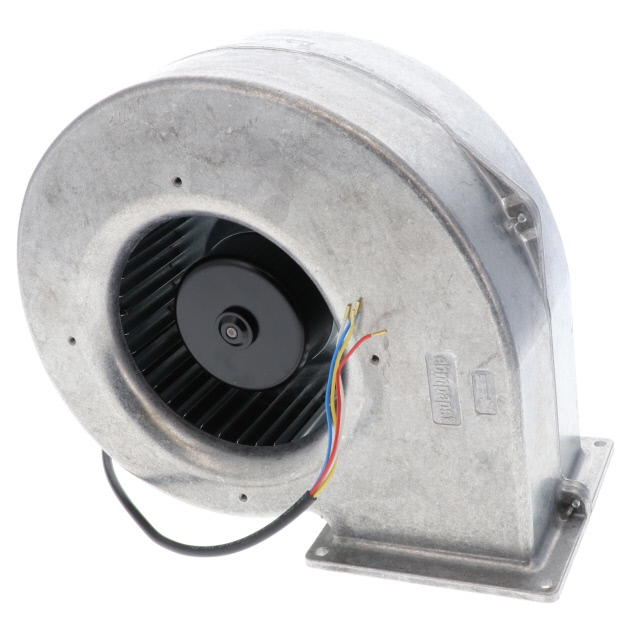

FAN BLOWER 226.3X130.0MM 24VDC
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Ingress Protection | Fan Type | Bearing Type | RPM | Width [y] | Features | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Power (Watts) | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 2.5 A | Aluminum | 16 VDC | 28 V | IP22 | Blower | Ball | 1750 RPM | 130 mm | PWM Control Speed Sensor (Tach) | EAC | -25 °C | 60 °C | 4 Wire Leads with Splice Terminals | 54 W | Rectangular/Rounded | 226.3 mm | 261.5 mm | 24 VDC |
