470515CY Series

Catalog

CABLE 5COND 15AWG CLEAR SHLD 30M

Part	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Conductor Insulation	Length	Length	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Cable Type	Shield Type	Voltage	Shield Material	Features	Wire Gauge	Jacket (Insulation) Material
ALPHA WIRE 470515CY CL432	Clear	80 °C	-40 C	5	Poly-Vinyl Chloride (PVC)	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft	Industrial	1.05 mm	0.0413 in	98.43 ft 984.3 ft	30 m 300 m	80 %	28	0.0098 in	10.8 mm	0.425 in	Copper Bare	Multi-Conductor	Braid	300 VDC	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	15 AWG	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470515CY CL033	Clear	80 °C	-40 C	5	Poly-Vinyl Chloride (PVC)			Industrial	1.05 mm	0.0413 in	328.1 ft	100 m	80 %	28	0.0098 in	10.8 mm	0.425 in	Copper Bare	Multi-Conductor	Braid	300 VDC	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	15 AWG	Poly-Vinyl Chloride (PVC)

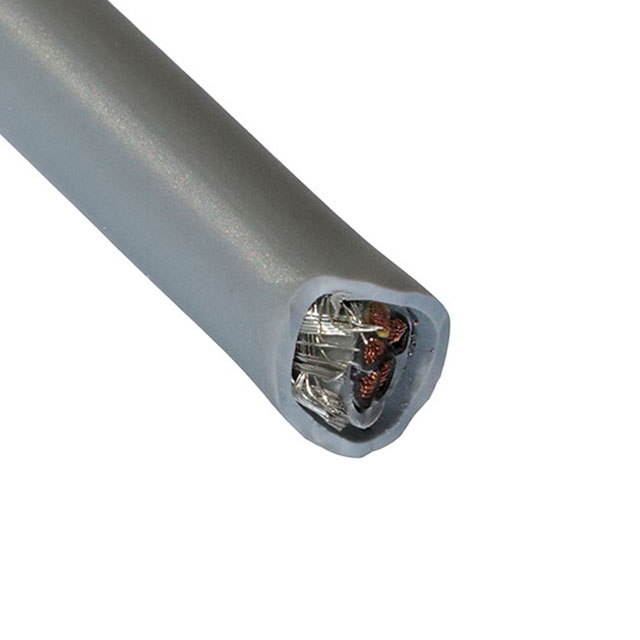

ALPHA WIRE 470515CY GE033	Gray	80 °C	-40 C	5	Poly-Vinyl Chloride (PVC)			Industrial	1.05 mm	0.0413 in	328.1 ft	100 m	80 %	28	0.0098 in	10.8 mm	0.425 in	Copper Bare	Multi-Conductor	Braid	300 VDC	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	15 AWG	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 470515CY GE432	Gray	80 °C	-40 C	5	Poly-Vinyl Chloride (PVC)	1 m 20 m	3.28 ft 65.62 ft	Industrial	1.05 mm	0.0413 in	98.43 ft	30 m	80 %	28	0.0098 in	10.8 mm	0.425 in	Copper Bare	Multi-Conductor	Braid	300 VDC	Copper Tinned	Chemical Resistant Oil Resistant UV Resistant	15 AWG	Poly-Vinyl Chloride (PVC)
