THS3201-EP Series

Enhanced Product 1.8-Ghz Low Distortion Current Feedback Amplifier

Catalog

Enhanced Product 1.8-Ghz Low Distortion Current Feedback Amplifier

Part	Voltage - Supply Span (Max) [Max]	Slew Rate	Amplifier Type	Current - Output / Channel	-3db Bandwidth	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Current - Supply	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Supplier Device Package	Voltage - Input Offset	Package / Case [custom]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part	Supplied Contents	Output Type	Board Type	Channels per IC	Current - Supply (Main IC)
Texas Instruments THS3201DG4	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	8-SOIC	700 µV
Texas Instruments THS3201DGNR	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-MSOP 8-TSSOP Exposed Pad			Surface Mount	8-HVSSOP	700 µV	0.118 in 3 mm

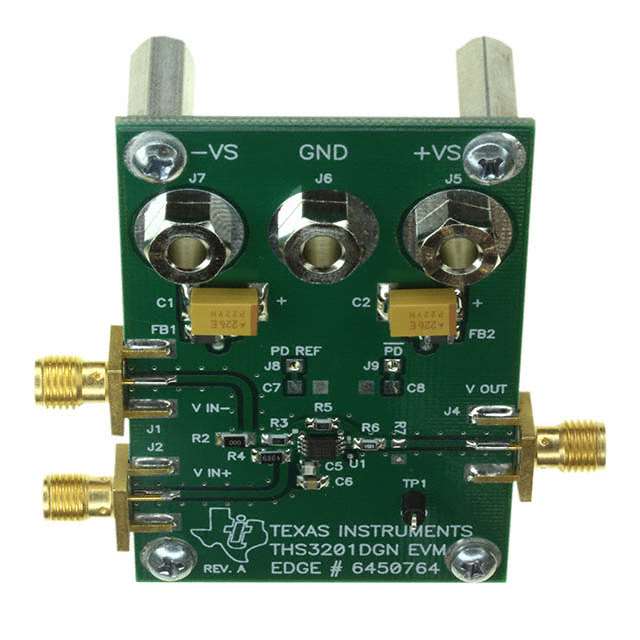

Texas Instruments THS3201EVM		9800 V/µs	Current Feedback	115 mA	1.8 GHz														7.5 V 15 V	-3.3 V 6.6 V	THS3201	Board(s)	Single-Ended	Fully Populated	1 - Single	14 mA
Texas Instruments THS3201DGN	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-MSOP 8-TSSOP Exposed Pad			Surface Mount	8-HVSSOP	700 µV	0.118 in 3 mm
Texas Instruments THS3201DRG4	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	8-SOIC	700 µV
Texas Instruments THS3201DBVRG4	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	SC-74A SOT-753			Surface Mount	SOT-23-5	700 µV
Texas Instruments THS3201DBVTG4	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	SC-74A SOT-753			Surface Mount	SOT-23-5	700 µV
Texas Instruments THS3201DBVR	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	SC-74A SOT-753			Surface Mount	SOT-23-5	700 µV
Texas Instruments THS3201D	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	8-SOIC	700 µV
Texas Instruments THS3201DR	15 V	9800 V/µs	Current Feedback	115 mA	1.8 GHz	6.6 V	14 µA	85 °C	-40 °C	1	14 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	8-SOIC	700 µV

Catalog

Enhanced Product 1.8-Ghz Low Distortion Current Feedback Amplifier

Key Features

• Unity Gain Bandwidth: 1.8 GHzHigh Slew Rate: 6700 V/µs (G = 2 V/V, RL= 100, 5-VStep)IMD3: &150;78 dBc at 20 MHz: (G = 10 V/V, RL= 100, 2-VPPEnvelope)Noise Figure: 11 dB (G = 10 V/V, RG= 28, RF= 255)Input Referred Noise (f > 10 MHz)Voltage Noise: 1.65 nV/HzNoninverting Current Noise: 13.4 pA/HzInverting Current Noise: 20 pA/HzOutput Drive: 100 mAPower-Supply Voltage Range: ±3.3 V to ±7.5 VSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (–5°C/125°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityAPPLICATIONSHigh-Resolution, High-Sampling-Rate Analog-to-Digital Converter DriversHigh-Resolution, High-Sampling-Rate Digital-to-Analog Converter Output BuffersTest and MeasurementATEAdditional temperature ranges are available - contact factoryPowerPAD is a trademark of Texas Instruments.Unity Gain Bandwidth: 1.8 GHzHigh Slew Rate: 6700 V/µs (G = 2 V/V, RL= 100, 5-VStep)IMD3: &150;78 dBc at 20 MHz: (G = 10 V/V, RL= 100, 2-VPPEnvelope)Noise Figure: 11 dB (G = 10 V/V, RG= 28, RF= 255)Input Referred Noise (f > 10 MHz)Voltage Noise: 1.65 nV/HzNoninverting Current Noise: 13.4 pA/HzInverting Current Noise: 20 pA/HzOutput Drive: 100 mAPower-Supply Voltage Range: ±3.3 V to ±7.5 VSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (–5°C/125°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityAPPLICATIONSHigh-Resolution, High-Sampling-Rate Analog-to-Digital Converter DriversHigh-Resolution, High-Sampling-Rate Digital-to-Analog Converter Output BuffersTest and MeasurementATEAdditional temperature ranges are available - contact factoryPowerPAD is a trademark of Texas Instruments.

Description

The THS3201 is a wideband, high-speed current-feedback amplifier, designed to operate over a wide supply range of ±3.3 V to ±7.5 V for today's high performance applications. The wide supply range, combined with low distortion and high slew rate, makes the THS3201 ideally suited for arbitrary waveform driver applications. The distortion performance also enables driving high-resolution and high-sampling rate analog-to-digital converters (ADCs). Its high voltage operation capabilities make the THS3201 especially suitable for many test, measurement, and ATE applications where lower voltage devices do not offer enough voltage swing capability. Output rise and fall times are nearly independent of step size (to first-order approximation), making the THS3201 ideal for buffering small to large step pulses with excellent linearity in high dynamic systems. The THS3201 is offered in a 5-pin SOT-23, 8-pin SOIC, and an 8-pin MSOP with PowerPAD™ packages. The THS3201 is a wideband, high-speed current-feedback amplifier, designed to operate over a wide supply range of ±3.3 V to ±7.5 V for today's high performance applications. The wide supply range, combined with low distortion and high slew rate, makes the THS3201 ideally suited for arbitrary waveform driver applications. The distortion performance also enables driving high-resolution and high-sampling rate analog-to-digital converters (ADCs). Its high voltage operation capabilities make the THS3201 especially suitable for many test, measurement, and ATE applications where lower voltage devices do not offer enough voltage swing capability. Output rise and fall times are nearly independent of step size (to first-order approximation), making the THS3201 ideal for buffering small to large step pulses with excellent linearity in high dynamic systems. The THS3201 is offered in a 5-pin SOT-23, 8-pin SOIC, and an 8-pin MSOP with PowerPAD™ packages.
