TL6400 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Actuator Height off PCB, Vertical [z]	Ingress Protection	Operating Force	Termination Style	Contact Rating @ Voltage	Actuator Orientation	Mounting Type	Outline [x]	Outline [y]	Circuit	Actuator Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination

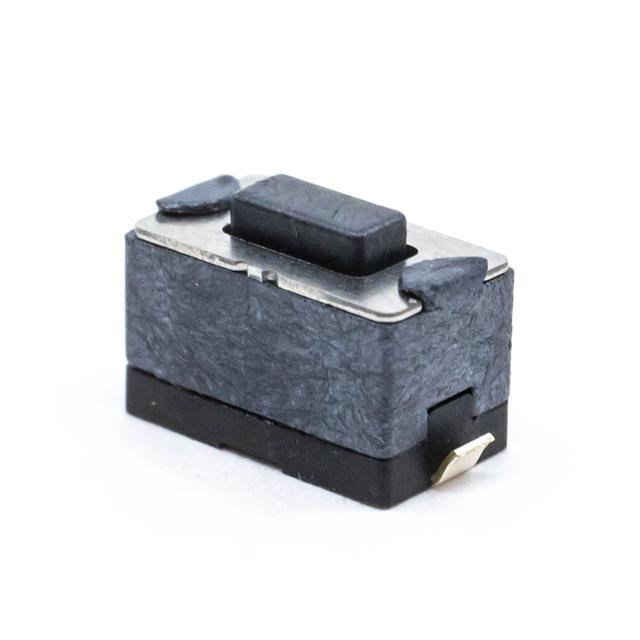

E-Switch TL6400AF160QJ	50000 Cycles	0.15 mm	4.3 mm	IP67 - Dust Tight Waterproof	160 gf	J Lead	0.05 A 12 VDC	Top Actuated	Surface Mount	6 mm	3.5 mm	SPST-NO	Rectangular Button	Off-Mom	85 °C	-40 C	Non-Illuminated

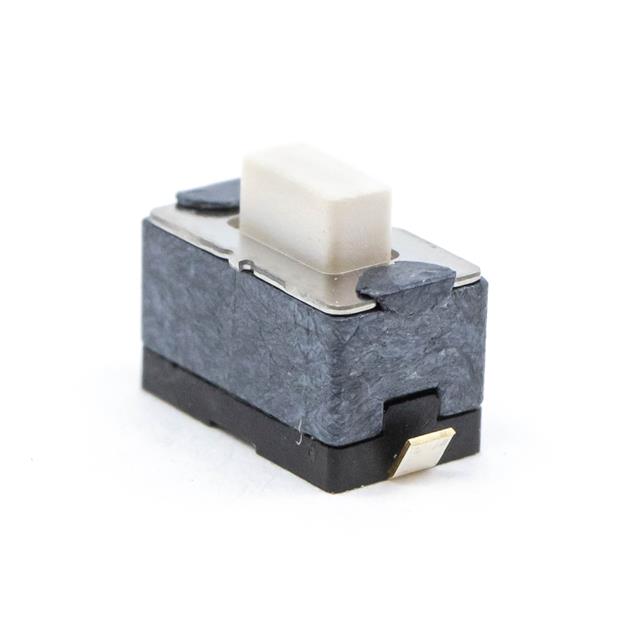

E-Switch TL6400BF260QJ	30000 Steps	0.15 mm	5 mm	IP67 - Dust Tight Waterproof	260 gf	J Lead	0.05 A 12 VDC	Top Actuated	Surface Mount	6 mm	3.5 mm	SPST-NO	Rectangular Button	Off-Mom	85 °C	-40 C	Non-Illuminated

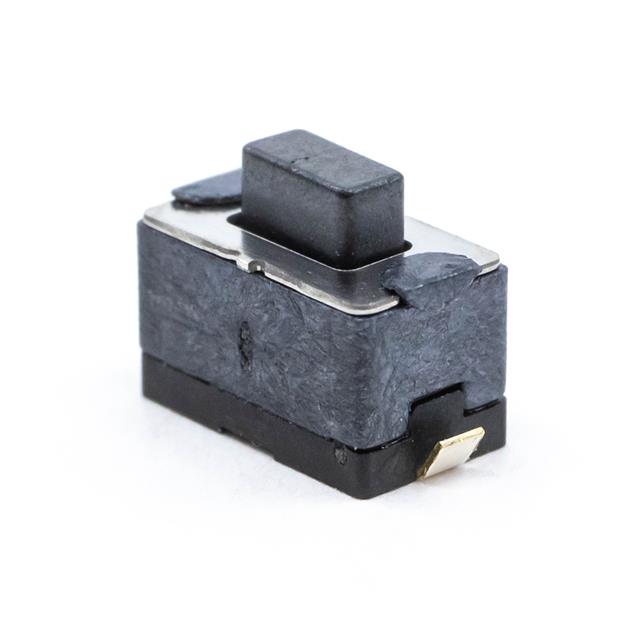

E-Switch TL6400BF160QJ	50000 Cycles	0.15 mm	5 mm	IP67 - Dust Tight Waterproof	160 gf	J Lead	0.05 A 12 VDC	Top Actuated	Surface Mount	6 mm	3.5 mm	SPST-NO	Rectangular Button	Off-Mom	85 °C	-40 C	Non-Illuminated

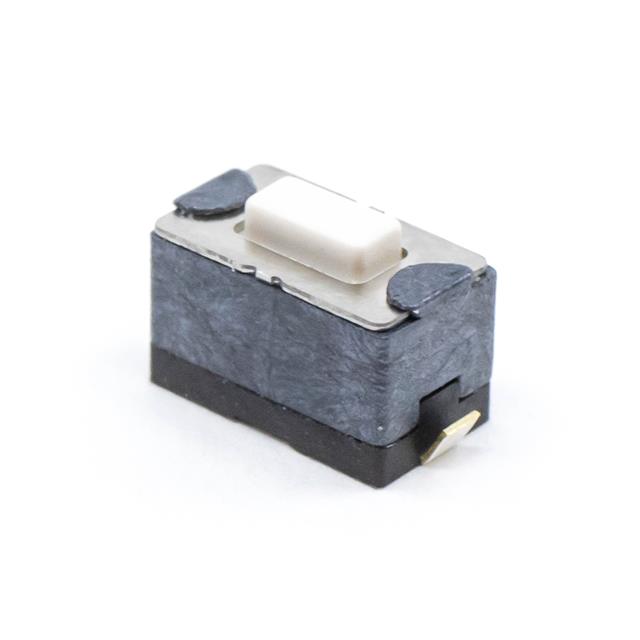

E-Switch TL6400AF260QJ	30000 Steps	0.15 mm	4.3 mm	IP67 - Dust Tight Waterproof	260 gf	J Lead	0.05 A 12 VDC	Top Actuated	Surface Mount	6 mm	3.5 mm	SPST-NO	Rectangular Button	Off-Mom	85 °C	-40 C	Non-Illuminated
