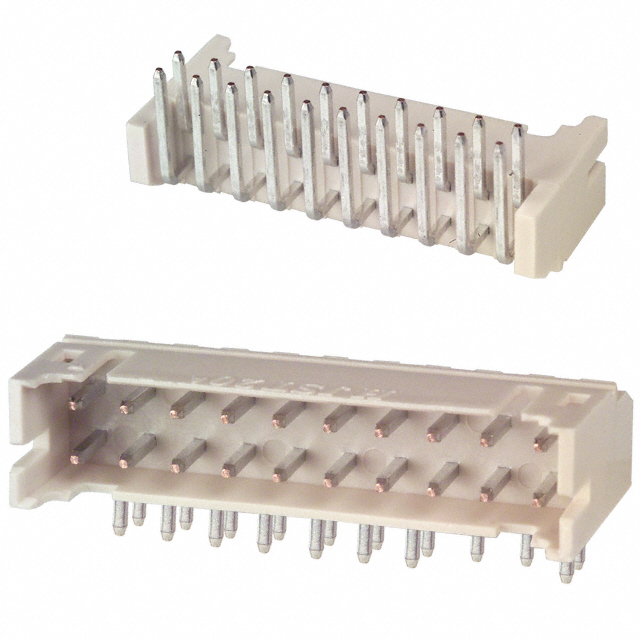

S20B-PHD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 20POS 2MM
| Part | Shrouding | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Material | Number of Positions | Style | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Type | Number of Rows [custom] | Contact Length - Post | Contact Length - Post | Termination | Current Rating (Amps) | Material Flammability Rating | Contact Shape | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Finish - Post | Contact Type | Number of Positions Loaded | Voltage Rating | Insulation Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | 0.079 " | 2 mm | 2 mm | 0.079 in | 0.197 " | 5 mm | Copper Alloy | 20 | Board to Cable/Wire | 85 °C | -25 °C | Detent Lock | Right Angle Through Hole | 2 | 0.118 in | 3 mm | Solder | 3 A | UL94 V-0 | Square | 2.9 mm | 0.114 in | Natural | Tin | Male Pin | All | 250 V | Glass Filled Nylon Polyamide (PA) | Header |
