322-83 Series
Manufacturer: Preci-Dip
Beta
⌘K

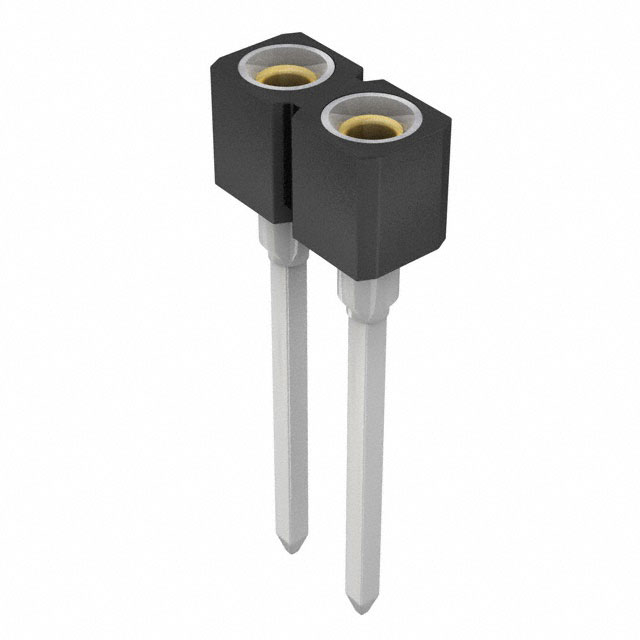

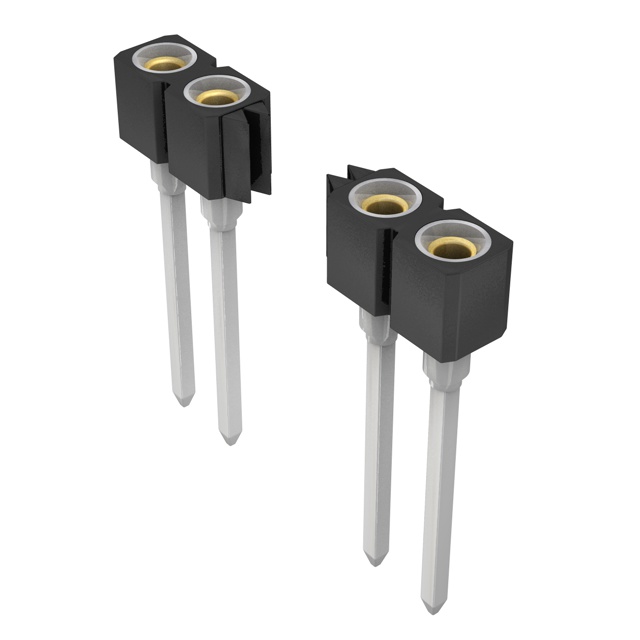

CONN SOCKET 51POS 0.1 GOLD PCB
| Part | Contact Material | Insulation Material | Contact Shape | Contact Length - Post | Contact Length - Post | Number of Rows | Number of Positions Loaded | Termination | Contact Type | Insulation Color | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Fastening Type | Contact Finish - Mating | Material Flammability Rating | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Style | Number of Positions | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 51 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 34 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 35 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 52 | |
 Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 2 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 10 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 30 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 59 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire | 37 | |
Preci-Dip | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | 9.4 mm | 0.37 in | 1 | All | Wire Wrap | Female Socket | Black | 0.1 " | 2.54 mm | 3 A | Push-Pull | Gold | UL94 V-0 | 4.9 mm | 0.193 " | Through Hole | Tin | 29.5 µin | 0.75 µm | -55 C | 125 °C | Socket | Board to Cable/Wire |
