DK0110 Series
Manufacturer: Thermo Heating Elements
Beta
⌘K
1.0 X 10.0 IN. POLYMER THICK FIL
| Part | Watt Density @ 12V | Attachment Method | Color | Temperature Rating | Temperature Rating | Material | Voltage | Shape | Length - Lead Wire [x] | Length - Lead Wire [x] | Length | Length | Termination | Type | Width [x] | Width [x] | Material - Insulation | Power (Watts) | Wire Gauge | Resistance | Width | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

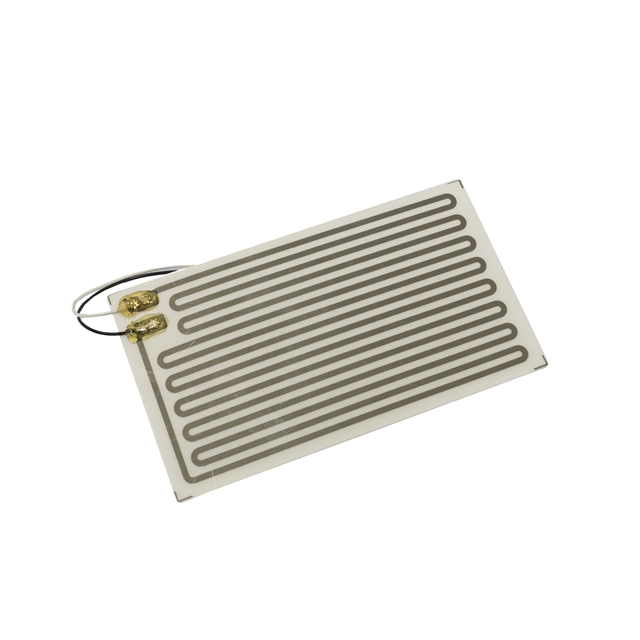

 Thermo Heating Elements | 500 mW/in² | Pressure Sensitive Adhesive (PSA) Pressure Sensitive Adhesive (PSA) | Black | 115 °C | 239 °F | Polyester | 12 V | Rectangular | 304.8 mm | 12 in | 1 in | 25.4 mm | Wire Leads | Flexible Heater Printed | 10 in | 254 mm | Polyvinyl Chloride (PVC) | 5 W | 20 AWG | 28.8 Ohms | ||

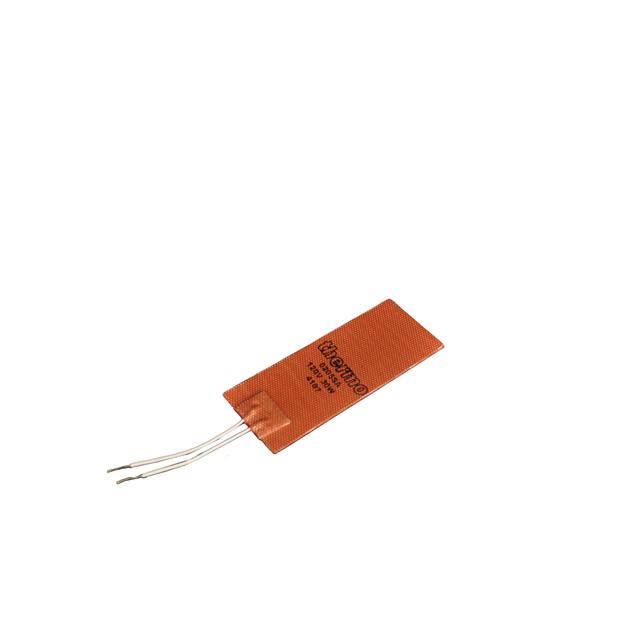

 Thermo Heating Elements | 2 W/in² | Pressure Sensitive Adhesive (PSA) Pressure Sensitive Adhesive (PSA) | Black | 220 °C | 428 °F | Silicone Rubber | 24 V | Rectangular | 304.8 mm | 12 in | 1 in | 25.4 mm | Wire Leads | Wound | Polytetrafluoroethylene (PTFE) | 24 W | 20 AWG | 24 Ohms | 304.8 mm | 12 in |
